- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Geist
- Product Type
- PDU

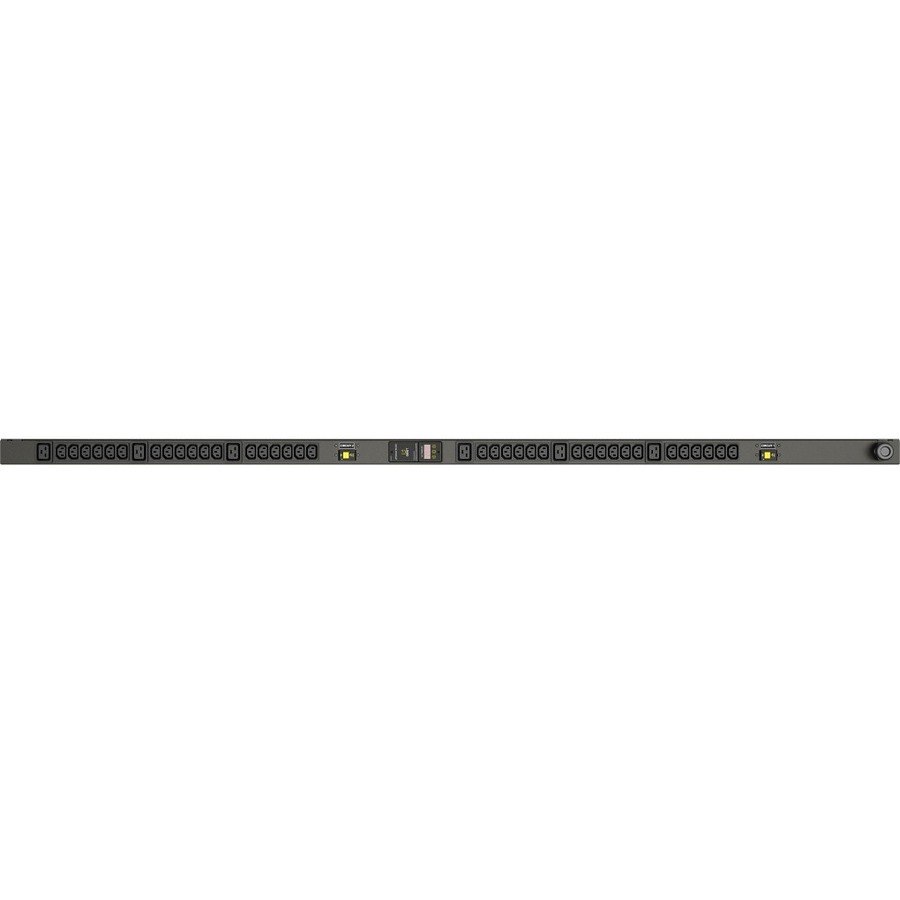

The I10083 provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology, I10083 optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology, users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module, without causing any interruption.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- PDU Type
- Metered
- Plug/Connector Type
- NEMA L6-30P
- Plug/Connector Detail
- 1 x NEMA L6-30P
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 36 x IEC 60320 C13
- 6 x IEC 60320 C19
- Protection Type
- Overcurrent Protection
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage
- 208 V AC
- Power Rating (Watt)
- 4900 W
- Input Current
- 30 A
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Width
- 2"
- Depth
- 2"
- Length
- 70"
- Miscellaneous
- Package Contents
- MN01D4W1-42IZ68-3TL6A0A10-S 42-Outlets PDU
- Vertical Mounting Bracket Kit
- Country of Origin
- United States
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
