- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.eaton.com
- Brand Name
- Eaton
- Product Line
- ePDU
- Product Type
- PDU

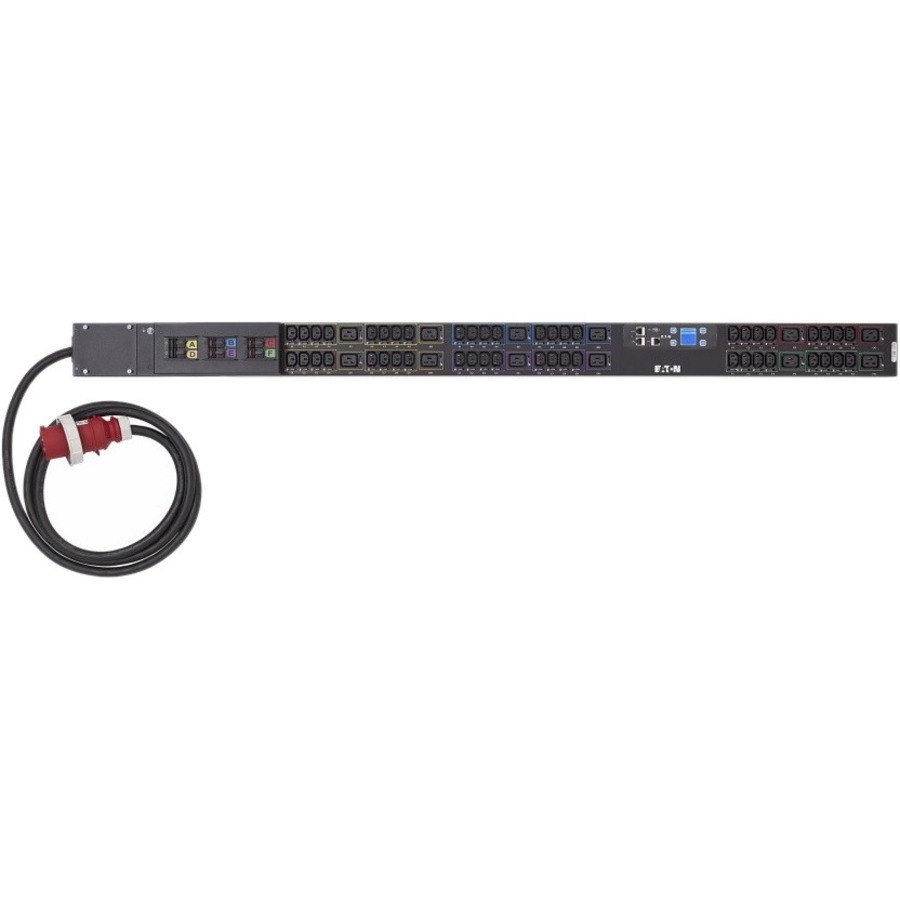

Eaton's fuse disconnect ePDUs offer higher amp interrupt capacity compared to circuit breakers giving the ability to clear higher fault currents. Additionally, the fuses can be safely changed without removing power to the PDU. Offered in Basic, Metered Input, Metered Outlet and Managed technologies, the fuse disconnect models include all of the same best-in-class features of the G3 platform.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- PDU Type
- Metered
- Phase
- Three Phase
- Plug/Connector Type
- 309-532P6W
- Plug/Connector Detail
- 1 x 309-532P6W
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 48 x IEC 60320 C13
- 12 x IEC 60320 C19
- Protection Type
- Circuit Protection
- Power Description
- Input Voltage
- 230 V AC
- 400 V AC
- Output Voltage Range
- 200 V AC - 240 V AC
- Power Rating (Watt)
- 17.30 kW
- Input Current
- 24 A
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Height
- 2.1"
- Width
- 4.1"
- Depth
- 63.2"
- Weight (Approximate)
- 16.50 lb
- Miscellaneous
- Country of Origin
- United States
- TAA Compliant
- Yes
