- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Line
- ThinkSystem
- Product Series
- DM
- Packaged Quantity
- 1
- Product Type
- SAN/NAS Storage System

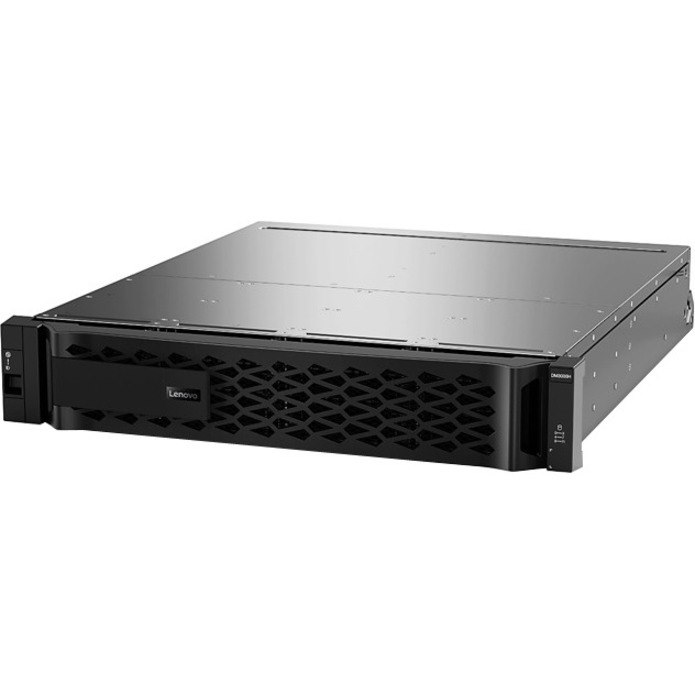

Lenovo ThinkSystem DM3000H is a unified, hybrid storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small enterprises and remote offices/branch offices of large enterprises. Powered by the ONTAP software, ThinkSystem DM3000H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
The ThinkSystem DM3000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of general purpose workloads, including file services, virtualization, Microsoft applications, backup and archiving, and other storage I/O-intensive applications.
ThinkSystem DM3000H models are 2U rack-mount controller enclosures that include two controllers, 64 GB RAM and 8 GB battery-backed NVRAM per system (32 GB RAM and 4 GB NVMRAM per controller), and 12 LFF hot-swap drive bays (2U12 form factor). Controllers provide universal 1/10 GbE NAS/iSCSI or 4/8/16 Gb Fibre Channel (FC) ports, or 1/10 GbE RJ-45 ports for host connectivity.
A single ThinkSystem DM3000H Storage Array scales up to 144 drives with the attachment of ThinkSystem DM120S 2U12 LFF, DM600S 4U60 LFF, and DM240S 2U24 SFF Expansion Enclosures.
- Warranty
- Limited Warranty
- 1 Year
- Storage
- Number of Hard Drives Supported
- 12
- Number of Hard Drives Installed
- 12
- Total Hard Drive Capacity Installed
- 48 TB
- Hard Drive Interface
- Serial Attached SCSI (SAS)
- Hard Drive Configuration
- 12 x 4TB
- Number of Solid State Drive Supported
- 12
- Number of Solid State Drive Installed
- 0
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 12
- Number of 3.5" Bays
- 12
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
- Controllers
- Number of Controllers
- 2
- Controller Type
- 12Gb/s SAS
- RAID Supported
- Yes
- Interfaces/Ports
- Drive Interface
- 12Gb/s SAS
- Number of SAS Ports (External)
- 4
- Total Number of USB Ports
- 2
- Number of USB 2.0 Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 8
- Fibre Channel
- Yes
- Software
- Operating System
- Data ONTAP 9.7
- Management & Protocols
- Protocols
- NFS
- CIFS
- SMB
- iSCSI
- SSH
- SNMP
- SSL
- LDAP
- FCP
- Power Description
- Number of Power Supplies Installed
- 2
- Plug/Connector Type
- C13 to IEC 320-C14
- Maximum Power Supply Wattage
- 913 W
- Redundant Power Supply
- Yes
- Physical Characteristics
- Height
- 3.4"
- Width
- 17.6"
- Depth
- 20"
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Weight (Approximate)
- 63.70 lb
- Miscellaneous
- Package Contents
- ThinkSystem DM3000H Unified Hybrid Storage Array
- Rack Mount Kit
- 2 m USB Cable (USB Type A to Micro-USB)
- 2 x 0.5m Passive DAC SFP+ Cables
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
