- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Type
- Ethernet Switch

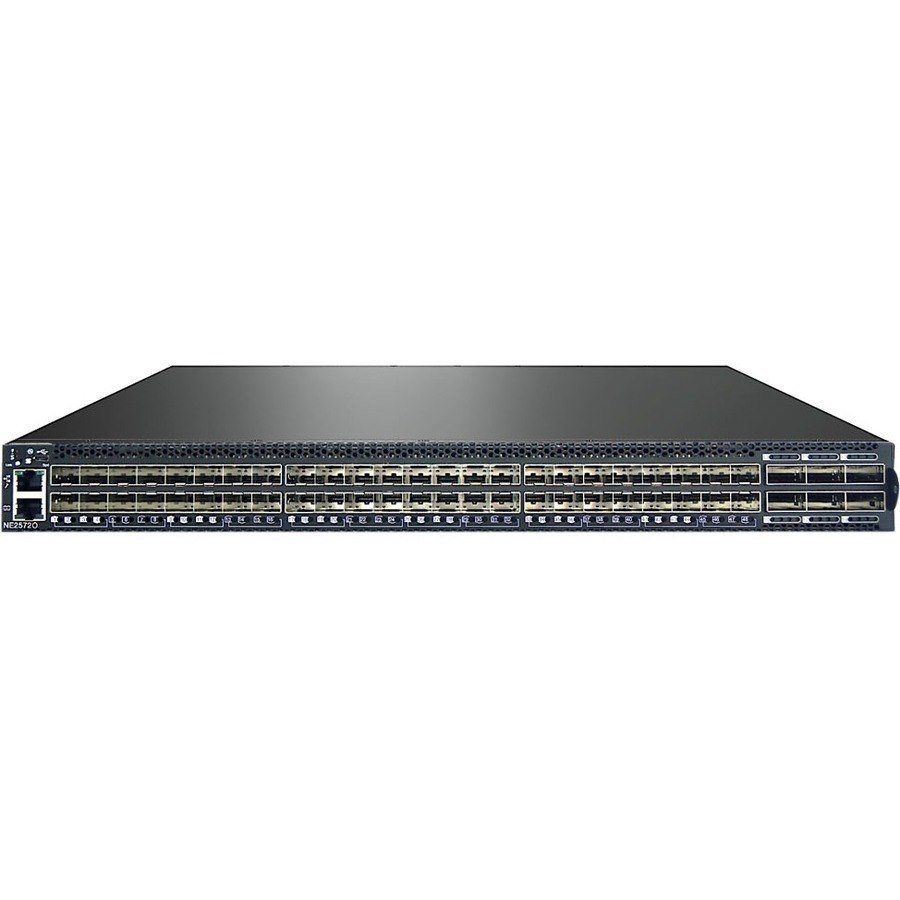

The Lenovo ThinkSystem NE2572O RackSwitch is designed for big data, cloud, and enterprise workloads in the data center, and it provides 10 Gb/25 Gb Ethernet connectivity with 40 Gb/100 Gb Ethernet upstream links. The switch delivers line-rate, low-latency, and high-bandwidth switching, while providing high availability for business sensitive traffic with the hot-swap redundant power supplies and fans.
The NE2572O RackSwitch has 48x SFP28/SFP+ ports that support 10 GbE SFP+ and 25 GbE SFP28 optical transceivers, active optical cables (AOCs), and direct attach copper (DAC) cables. The switch also offers 6x QSFP28/QSFP+ ports that support 40 GbE QSFP+ and 100 GbE QSFP28 optical transceivers, active optical cables (AOCs), and direct attach copper (DAC) cables. The QSFP28/QSFP+ ports can also be split out into two 50 GbE (for 100 GbE QSFP28), or four 10 GbE (for 40 GbE QSFP+) or 25 GbE (for 100 GbE QSFP28) connections by using breakout cables.
- Warranty
- Limited Warranty
- 3 Year
- Interfaces/Ports
- Uplink Port
- Yes
- Modular
- Yes
- Port/Expansion Slot Details
- 48 x 25 Gigabit Ethernet Expansion Slot
- 6 x 100 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 25 Gigabit Ethernet
- 100 Gigabit Ethernet
- Network Technology
- 25GBase-X
- 100GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 54.0
- Expansion Slot Type
- SFP28
- QSFP28
- Network & Communication
- Layer Supported
- 2
- Management & Protocols
- Manageable
- Yes
- Power Description
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.4"
- Depth
- 19.2"
- Weight (Approximate)
- 25.13 lb
- Miscellaneous
- Package Contents
- ThinkSystem NE2572O RackSwitch
- Generic Rack Mount Kit (2-post)
- Cable Kit That Includes The Following Items:
- DB-9 (Plug) to RJ-45 (Plug) Serial Console Cable
- Micro-USB Type A (Plug) to USB Type A (jack) Data Cable
- Electronic Publications Flyer
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
