- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com
- Brand Name
- Zebra
- Product Series
- Xi
- Product Type
- Direct Thermal/Thermal Transfer Printer

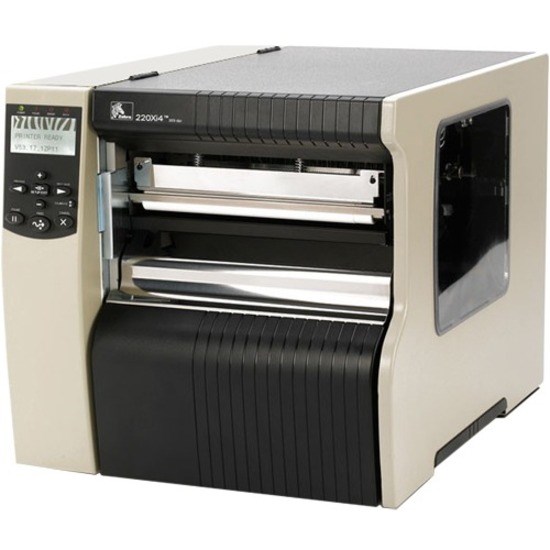

Designed to produce large labels at 203 dpi resolution, the 220Xi4 Thermal Label Printer is ideal for industrial applications such as chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 10 in/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Width
- 8.50"
- Barcode Symbology Supported
- Code 11
- Code 39
- Code 93
- Code 128
- Code 128-B
- Code 128-A
- Code 128-C
- Code 128 UCC
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- UPC 2 or 5 Digit Extension
- EAN With 2 or 5 Digit Extension
- Plessey
- POSTNET
- Standard 2 of 5
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Planet Code
- Codabar
- Codablock
- PDF-417
- Code 49
- Data Matrix
- Maxi Code
- QR Code
- TLC 39
- Micro PDF
- Aztec Code
- RSS
- GS1 DataBar
- Features
- LCD Display
- Print Technology
- Direct Thermal /Thermal Transfer
- Memory
- Standard Memory
- 16 MB
- Memory Technology
- SDRAM
- Flash Memory
- 8 MB
- Interfaces/Ports
- Parallel Port
- Yes
- Serial Port
- Yes
- USB
- Yes
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Cutter
- Cutter
- Yes
- Media Types & Handling
- Media Type
- Black Mark
- Continuous Form
- Roll Fed
- Die-cut Label
- Fanfold
- Media Handling
- Catch Tray
- Media Sensor
- Transmissive Media Sensor
- Reflective Media Sensor
- Media Thickness
- 12 mil
- Maximum Roll Diameter
- 3.20"
- Maximum Label Width
- 8.80"
- Maximum Label Length
- 12.50 ft
- Label Core Size
- 1"
- Ribbon Core Size
- 1"
- Fonts & Emulation
- Language Emulation
- XML
- ZPL II
- Power Description
- Input Voltage
- 110 V AC
- Physical Characteristics
- Height
- 15.5"
- Width
- 15.8"
- Depth
- 20.4"
- Miscellaneous
- Package Contents
- 220Xi4 Thermal Label Printer
- North American Edition Power Cord
- Xi4 User's Guid
- ZebraNet Connectivity CD
- Cables Included
- AC
- Additional Information
- Auto calibration
- Unicode Compliant
- Intelligent printhead
- 300 unique darkness settings
- Improved head test for element out
- Construction: 12-gauge steel frame
- Single 32 bit 133 Mhz RISC processor
- Multi-level Element Energy Equalizer
- Clear Media Side Door and Media Hanger
- Automatic media/ribbon sensing capability
- Mirror feature allows user-defined printer configurations to be retrieved from the network
- Platform Supported
- PC
- Country of Origin
- China
