- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com
- Brand Name
- Zebra
- Product Series
- RW
- Product Type
- Direct Thermal Printer

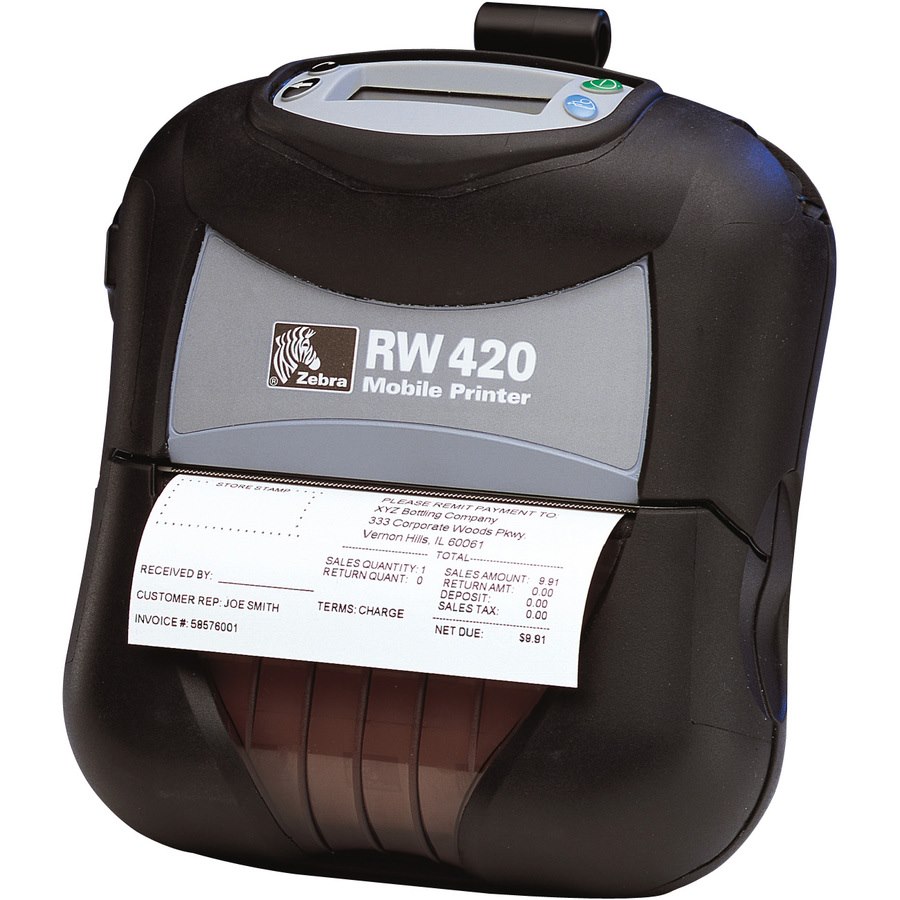

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 3 in/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Width
- 4.09"
- Barcode Symbology Supported
- Code 39
- Code 93
- UCC/EAN 128
- Code 128
- UPC-E
- UPC-A
- EAN-13
- EAN-8
- EAN-14
- EAN With 2 or 5 Digit Extension
- UPC 2 or 5 Digit Extension
- Plessey
- FIM
- POSTNET
- Interleaved 2 of 5
- MSI
- Codabar
- PDF-417
- Data Matrix
- Maxi Code
- RSS
- GS1 DataBar
- QR Code
- Aztec Code
- Features
- Magnetic Card Reader
- Belt Clip
- Smart Card Reader
- Abrasion Resistant
- Smart Battery Management
- Dust Resistant
- Water Resistant
- Drop Resistant
- Temperature Resistant
- Weather Resistant
- Print Technology
- Direct Thermal
- Memory
- Standard Memory
- 16 MB
- Flash Memory
- 8 MB
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- Network & Communication
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11g
- Display & Graphics
- Display Screen
- Yes
- Display Screen Type
- LCD
- Media Types & Handling
- Media Type
- Linered Label
- Receipt
- Tag
- Gap
- Continuous Receipt
- Direct Thermal Paper
- Synthetic Media
- UV Coated Media
- Media Sensor
- Transmissive Media Sensor
- Media Thickness
- 6.30 mil
- Maximum Roll Diameter
- 2.25"
- Maximum Label Width
- 4.12"
- Label Core Size
- 1.38"
- Fonts & Emulation
- Language Emulation
- CPCL
- EPL
- XML
- ZPL
- Power Description
- Power Source
- Battery
- Input Voltage
- 7.4 V DC
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Included
- Yes
- Battery Rechargeable
- Yes
- Physical Characteristics
- Form Factor
- Portable
- Height
- 6.9"
- Width
- 6.3"
- Depth
- 3"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Package Contents
- RW 420 Receipt Printer Government Compliant
- Battery
- Belt Clip
- Platform Supported
- PC
- Certifications & Standards
- IP54
- FCC Part 15 Class B
- Canadian ICES-003
- VCCI
- NOM/NYCE
- CE compliance (Class B)
- C-Tick
- CSA
- TAA
- Country of Origin
- United States
