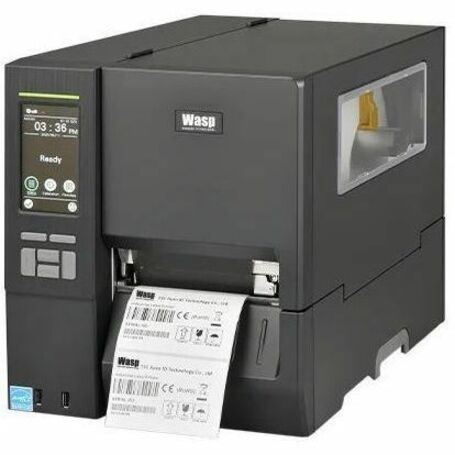

The Wasp WPL614Plus industrial barcode printer is rugged, affordable and includes an advanced set of features to ensure years of performance in a range of applications including manufacturing, transportation and logistics, warehousing and retail.
- General Information
- Manufacturer
- Wasp Barcode Technologies
- Manufacturer Website Address
- http://www.waspbarcode.com
- Brand Name
- Wasp
- Product Type
- Direct Thermal/Thermal Transfer Printer
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 14 in/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Length
- 83.33 ft
- Maximum Print Width
- 4.09"
- Barcode Symbology Supported
- 1D
- Code 39
- Code 93
- Code 128 UCC
- Codabar
- Interleaved 2 of 5
- EAN 128
- UPC-A
- UPC-E
- EAN and UPC 2(5) Digits Add-On
- MSI
- Plessey
- POSTNET
- RSS Stacked
- GS1 DataBar
- Code 11
- China Post
- 2D
- PDF-417
- Maxi Code
- Data Matrix
- QR Code
- AZTEC
- Application/Usage
- Industrial
- Manufacturing
- Transportation & Logistic
- Warehouse
- Retail
- Features
- Rugged
- Durable
- Easy to Use
- Mobile Device Printing
- Yes
- Wireless Print Technology
- Apple MFi Certified
- Number of Users
- 5
- Connectivity Technology
- Wired & Wireless
- Fonts Included
- 8 alpha-numeric bitmap fonts
- Monotype Imaging true type font engine with one CG Triumvirate Bold Condensed scalable font
- Duplex Printing
- Yes
- Print Technology
- Direct Thermal /Thermal Transfer
- Memory
- Standard Memory
- 256 MB
- Flash Memory
- 512 MB
- Interfaces/Ports
- USB
- Yes
- USB Standard
- USB 2.0
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Bluetooth
- Yes
- Bluetooth Version
- 4.2
- 5.0
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11a/b/g/n/ac
- Display & Graphics
- Display Screen
- Yes
- Screen Size
- 4.3"
- Display Screen Type
- LCD
- Touchscreen
- Yes
- Media Types & Handling
- Media Type
- Die-cut Label
- Black Mark
- Fanfold
- Notch
- Tag
- Perforated Paper
- Media Sensor
- Head Open Sensor
- Ribbon Encode Sensor
- Moveable Reflective/Black Mark Sensor
- Fonts & Emulation
- Language Emulation
- WPL
- EPL
- ZPL
- ZPL II
- DPL
- Power Description
- Power Source
- AC
- Frequency
- 50 Hz
- 60 Hz
- Environmental Conditions
- Operating Temperature
- 32°F (0°C) - 104°F (40°C)
- Storage Temperature
- -40°F (-40°C) - 140°F (60°C)
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 12.8"
- Width
- 10.9"
- Depth
- 19.8"
- Weight (Approximate)
- 34.61 lb
- Miscellaneous
- Package Contents
- WPL614Plus Industrial Barcode Printer
- Quick Start guide
- USB Cable
- Power Cord
- Cables Included
- RS-232
- USB
- AC
- Energy Star
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
