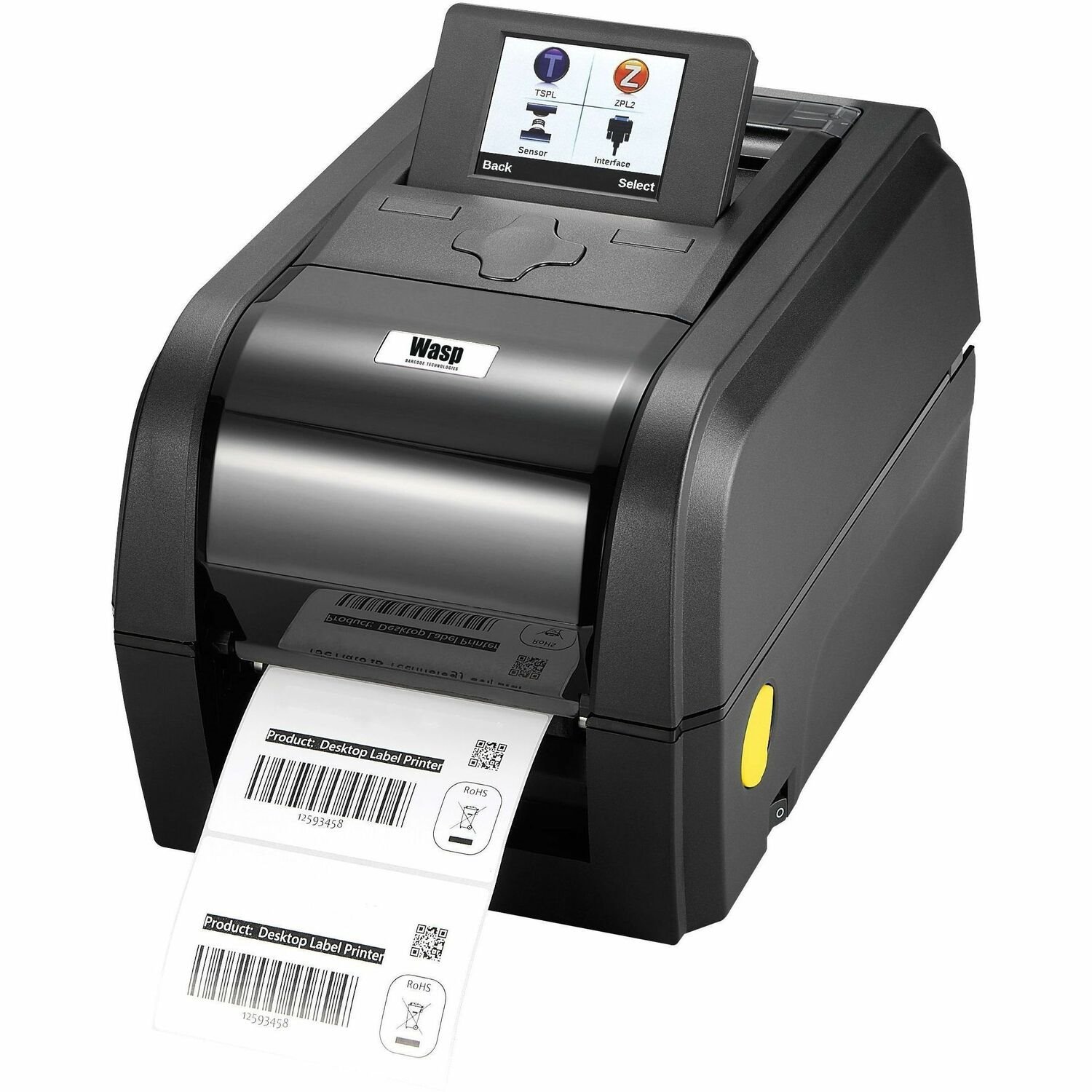

The WPL308Plus is a high-performance desktop printer designed to handle a wide variety of applications ranging from high-volume shipping label production to intricate jewelry labeling and safety signage. It features a user-friendly clamshell design, 3.5-inch color LCD display as well as thermal transfer and direct thermal printing capabilities. It delivers crisp, clear output at a rapid speed of 8 inches per second. Boasting a resolution of 203 DPI, it ensures precision in every print job.
- General Information
- Manufacturer
- Wasp Barcode Technologies
- Manufacturer Website Address
- http://www.waspbarcode.com
- Brand Name
- Wasp
- Product Type
- Direct Thermal/Thermal Transfer Printer
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 8 in/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Length
- 83.33 ft
- Maximum Print Width
- 4.25"
- Barcode Symbology Supported
- 1D
- Code 39
- Code 93
- Code 128 UCC
- Code 128 (A/B/C)
- Codabar
- Interleaved 2 of 5
- EAN 128
- UPC-A
- UPC-E
- EAN and UPC 2(5) Digits Add-On
- MSI
- Plessey
- POSTNET
- China Post
- ITF-14
- Code 11
- Telepen
- PLANET
- Code 49
- Deutsche Post Identcode
- Deutsche Post Leitcode
- LOGMARS
- 2D
- TLC 39
- CODABLOCK F Mode
- PDF-417
- Maxi Code
- Data Matrix
- QR Code
- AZTEC
- Micro PDF-417
- GS1 DataBar (RSS)
- Application/Usage
- Business
- Office
- Product Marking
- Asset Tracking
- Pharmacy
- Retail
- Industrial
- Features
- Plug and Play
- Clamshell Design
- Connectivity Technology
- Wired & Wireless
- Fonts Included
- 8 alpha-numeric bitmap fonts
- Monotype Imaging true type font engine with one CG Triumvirate Bold Condensed scalable font
- Print Technology
- Direct Thermal /Thermal Transfer
- Memory
- Standard Memory
- 128 MB
- Flash Memory
- 128 MB
- Interfaces/Ports
- USB Host
- Yes
- USB
- Yes
- USB Standard
- USB 2.0
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Bluetooth
- Yes
- Bluetooth Version
- 4.2
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11a/b/g/n/ac
- Display & Graphics
- Display Screen
- Yes
- Screen Size
- 3.5"
- Display Screen Type
- LCD
- Media Types & Handling
- Media Type
- Die-cut Label
- Black Mark
- Fanfold
- Notch
- Media Sensor
- Multi-position Transmissive/Gap Sensor
- Moveable Reflective/Black Mark Sensor
- Ribbon Encode Sensor
- Head Open Sensor
- Fonts & Emulation
- Language Emulation
- WPL
- EPL
- ZPL
- ZPL II
- Power Description
- Power Source
- AC Supply
- Frequency
- 50 Hz
- 60 Hz
- Environmental Conditions
- Operating Temperature
- 41°F (5°C) - 104°F (40°C)
- Storage Temperature
- 40°F (4.4°C) - 140°F (60°C)
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 7.8"
- Width
- 8.9"
- Depth
- 13.1"
- Weight (Approximate)
- 8.27 lb
- Miscellaneous
- Package Contents
- WPL308Plus Desktop Barcode Printer
- 203 DPI Thermal Printhead
- WPL308Plus Power Cable
- Line Cord (connects to the Power Cable)
- USB Cable
- Cables Included
- RS-232
- AC
- Energy Star
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
