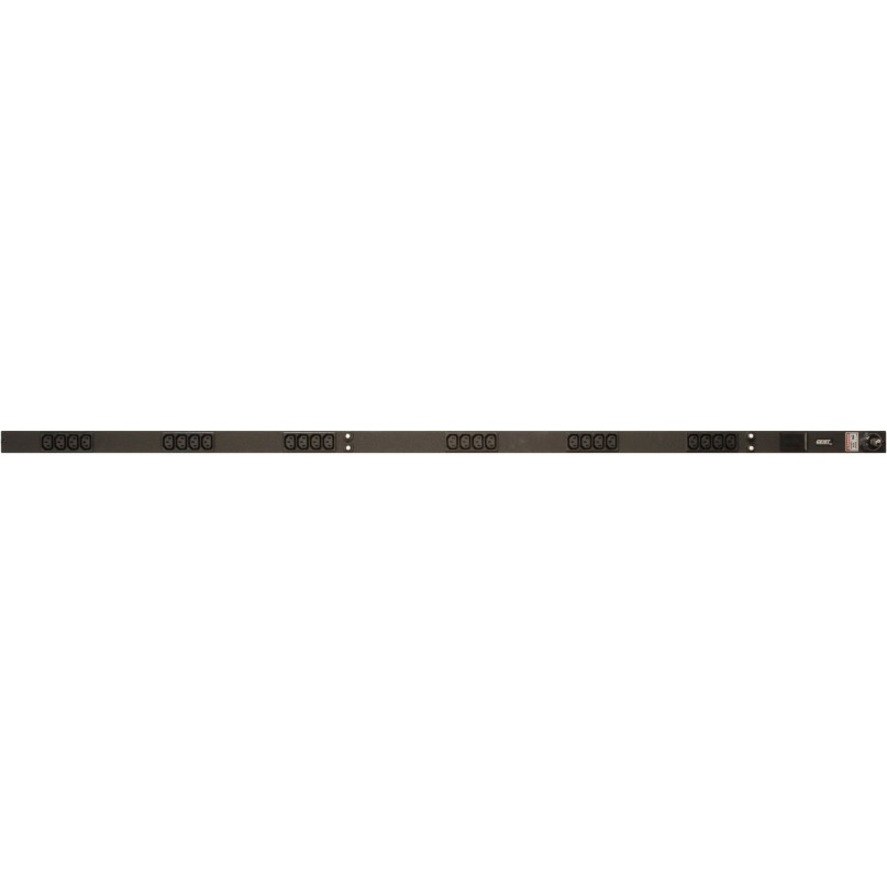

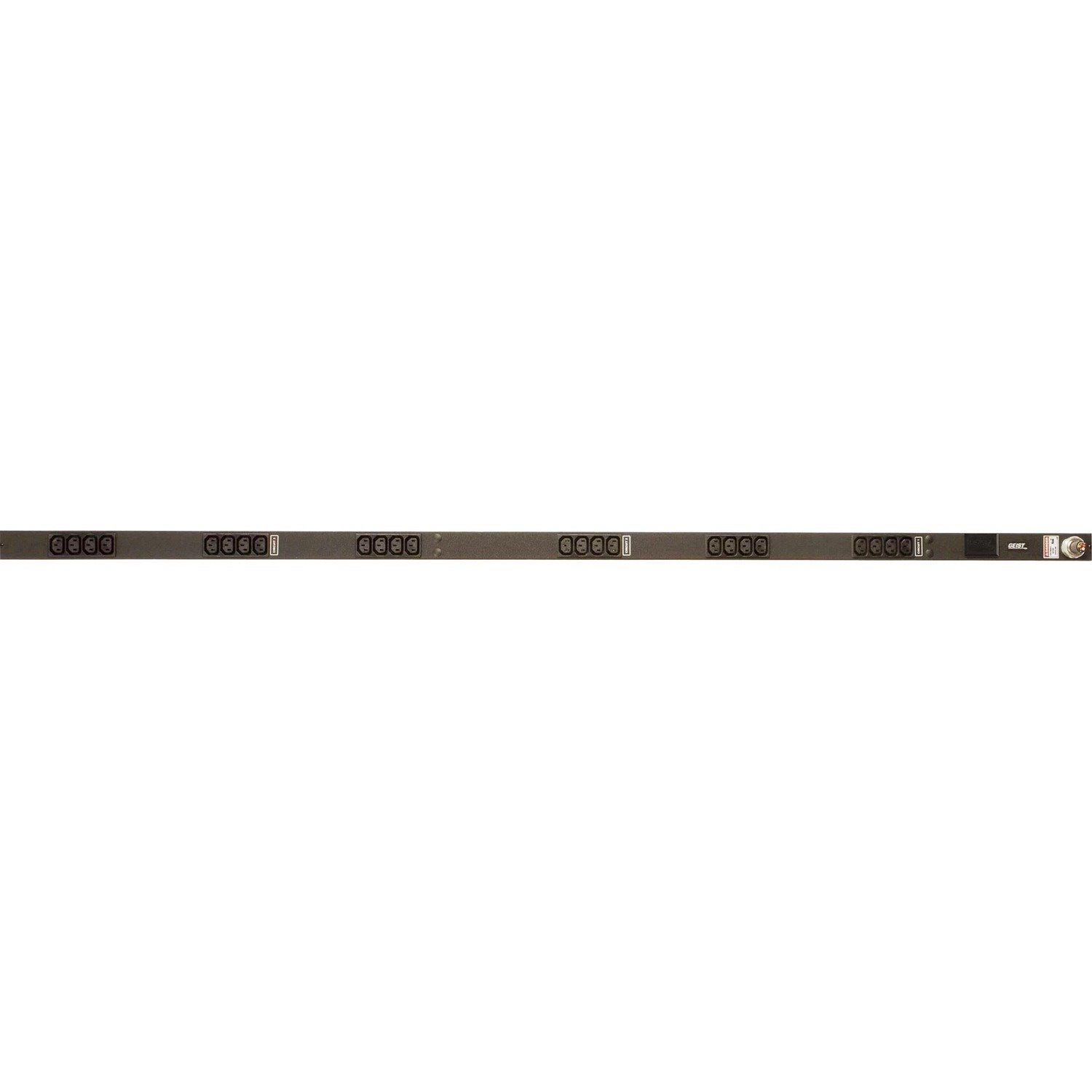

Eaton Tripp Lite Series 3.7kW 208/230V Single-Phase Basic PDU - 32 C13 & 6 C19 Outlets, L6-20P Input, 10 ft. Cord, 63.75 in. 0U Rack

  • Part: 1845134
  • Model: PDUV20HVL6-72
$267.00

Availability

In Stock
  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • PDU

Single-Phase 208/240V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.

Versatile Installation Options Give You Plenty of Choices

The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Included C20 and C14 plug-lock inserts attach to the connected components' plugs to keep them connected and the devices continuously powered.

Typical Applications

Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

Package Includes

  • PDUV20HVL6-72 3.3/3.8kW 208/240V Single-Phase Basic PDU
  • (38) Plug-lock inserts
  • Mounting hardware
  • Owner's manual
  • Warranty
    • Limited Warranty
    • 5 Year

  • Technical Information
    • PDU Type
    • Basic
    • Phase
    • Single Phase
    • Plug/Connector Type
    • NEMA L6-20P
    • Receptacle Type
    • IEC 60320 C13
    • IEC 60320 C19
    • Receptacle Detail
    • 32 x IEC 60320 C13
    • 6 x IEC 60320 C19
    • Protection Type
    • Accidental Power Shutdown
  • Power Description
    • Input Voltage
    • 230 V AC
    • Output Voltage
    • 200 V AC
    • 208 V AC
    • 240 V AC
    • Power Rating (Watt)
    • 3840 W
    • Input Current
    • 20 A
  • Physical Characteristics
    • Mounting Orientation
    • Vertical/Toolless
    • Mount Type
    • Wall-mountable
    • Rack-mountable
    • Placement
    • Under-counter
    • Rack Height
    • 0U
    • Cord Length
    • 10 ft
    • Height
    • 63.8"
    • Width
    • 2.3"
    • Depth
    • 3.8"
    • Weight (Approximate)
    • 8 lb
  • Miscellaneous
    • Package Contents
      • PDUV20HVL6-72 38-Outlets PDU
      • 38 x Plug-lock Inserts
      • Mounting Hardware
      • Owner's Manual
    • Additional Information

    • ENVIRONMENTAL

      • Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
      • Relative Humidity: 5-95% non-condensing
      • Operating Elevation: (ft.) 0-10,000
      • Operating Elevation: (m) 0-3000

      USER INTERFACE, ALERTS & CONTROLS

      • Switches: n/a
    • Certifications & Standards

    • STANDARDS & COMPLIANCE

      • Certifications: Tested to UL60950-1 (USA, Canada), NOM (Mexico)
      • Certification Details: Series Number (s) AGIB6672; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed) +A1:2011 +A2:2014; Safety Standards (U.S.) UL60950-1:2007 (2nd Ed)+A1 R10.14; Safety Standards (International) IEC60950-1:2005 (2nd Ed)+A1:2009+A2:2013
    • Country of Origin
    • China
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
