Blending ease of use and practicality, the SC732 mid-tower chassis is the ideal chassis for use at home or office. The optimized cooling technology allows for 21dB Whisper-Quiet operation. To save time and make installation easy, SC732 chassis series features 90-degree rotatable HDD cage, quick-and-easy one-push HDD installation, and numerous tool-less designs in conjunction with folded edges to ensure safety. The chassis is also versatile in front I/O access with four base models available: D4F/D4/D2/i and optional all-in-one card reader to further increase IO ports.
- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperChassis
- Product Series
- SC732
- Product Type
- Server Case
- Technical Information
- Motherboard Supported
- ATX
- EATX
- Micro ATX

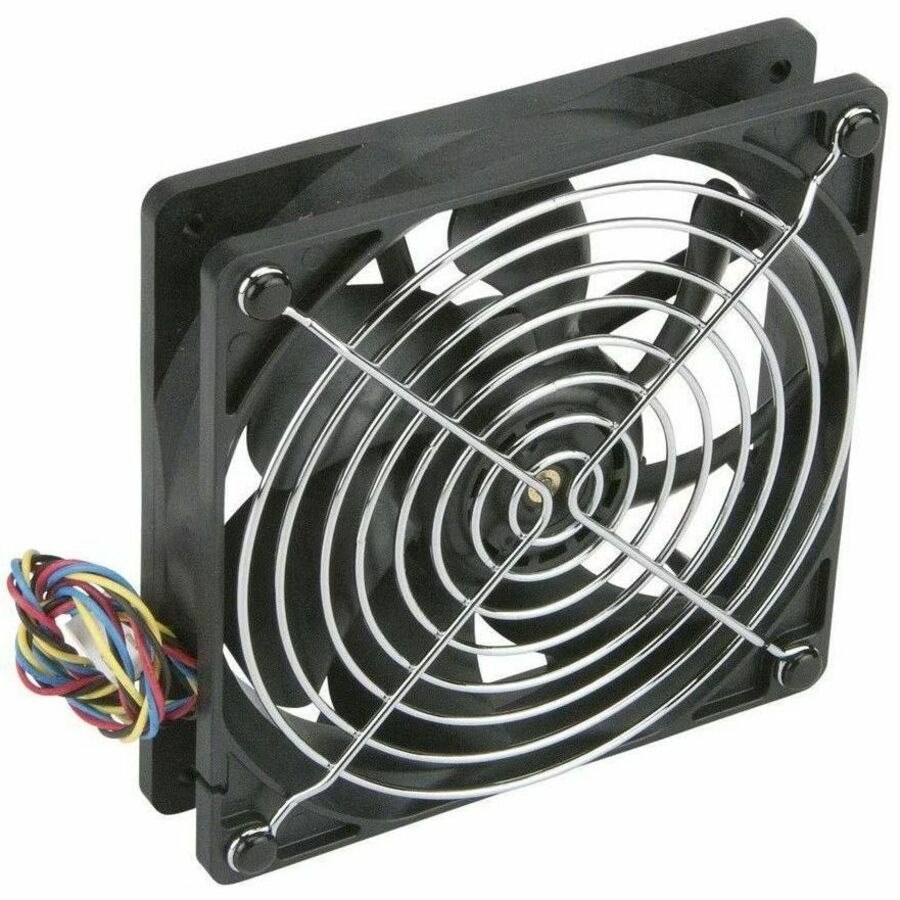

- Number of Fans Supported
- 2
- Number of Fans Installed
- 1
- Bays
- Number of Internal 3.5" Bays
- 4
- Number of External 2.5" Bays
- 4
- Number of Total Expansion Bays
- 8
- I/O Expansions
- Total Number of Expansion Slots
- 7
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Front USB
- Yes
- Total Number of FireWire Ports
- 1
- Front FireWire
- Yes
- Front Audio In
- Yes
- Total Number of Audio Out Ports
- 1
- Front Audio Out
- Yes
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Number of Power Supplies Supported
- 1
- Number of Power Supplies Installed
- 1
- Power Supply Wattage
- 900 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Mid-tower
- Height
- 7.6"
- Width
- 16.7"
- Depth
- 20.7"
- Weight (Approximate)
- 30 lb
