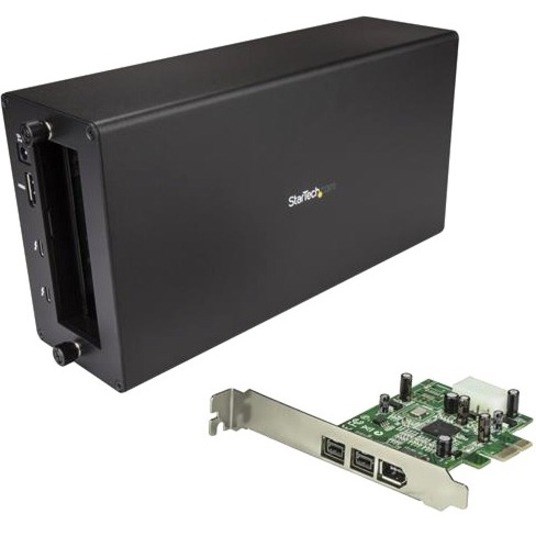

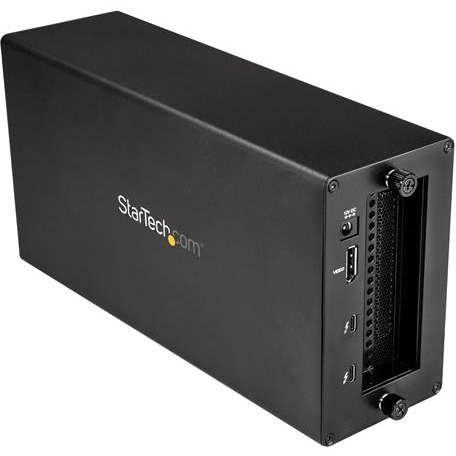

The Thunderbolt 3 to 1394 FireWire adapter connects your FireWire peripherals to your Thunderbolt 3 computer. This adapter combines StarTech.com's Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and 1394 FireWire adapter card (PEX1394B3). The chassis uses Thunderbolt 3 technology, the fastest connection available, supporting your FireWire® devices, plus one DisplayPort output and one additional Thunderbolt 3 port. Save on upgrade costs Use your legacy FireWire devices with your next-generation Thunderbolt 3 computer, without having to pay for upgraded peripherals. Increase productivity with Thunderbolt 3 Thunderbolt 3 is the fastest connection available. By avoiding performance bottlenecks, you can accomplish more in the same amount of time. With 40Gbps of throughput and support for other high-performance PCIe cards, you can swap the card in and out, to add the peripherals you need connected to a Thunderbolt 3 desktop or laptop computer. Install with ease Both hot-swap and backward compatible, you can assemble and connect this adapter in minutes. Install the PCIe card using only a Phillips type screwdriver, then plug and play with automatic driver installation. The TB31PCIEX16 is backed by StarTech.com's 2-year warranty. The PEX1394B3 is backed by StarTech.com's lifetime warranty.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Expansion Chassis
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Interfaces/Ports
- Host Interface
- Thunderbolt 3
- DisplayPorts Quantity
- 1
- Power Description
- Power Plug Type
- Type N
- Power Source Type
- Power Adapter
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Aluminum
- Steel
- Height
- 3.2"
- Width
- 5.6"
- Length
- 11"
- Weight (Approximate)
- 3.75 lb
- Miscellaneous
- Package Contents
- Thunderbolt 3 to FireWire Adapter - Card & Chassis
- AC Adapter
- Additional Information
- Connector Type(s): 1 - PCI Express x1
- Internal Ports: 1 - PCI Express x16; 1 - LP4 (4 pin; Large Drive Power)
- External Ports: 1 - FireWire 400 (6 pin, IEEE 1394a); 2 - FireWire 800 (9 pin, IEEE 1394b); 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps); 1 - DisplayPort (20 pin)
- Fan(s): Yes
- Fans: 1 - 92 mm
- Ports: 6
- Air Flow Rate: 14.06 CFM
- Noise Level: 24.55 dB
- Interface: Thunderbolt; FireWire 800 (1394b); FireWire 400 (1394a)
- Bus Type: Thunderbolt 3; PCI Express
- Card Type: Standard Profile
- Industry Standards: Thunderbolt 3; IEEE-1394/1394A/1394B; OHCI;PCI Express 1.1
- Fan Bearing Type: Sleeve Bearing
- Chipset ID: Intel - Alpine Ridge DSL6540 (Thunderbolt Chassis) Texas Instruments - XIO2213B (Firewire card)
- Application/Usage
- Desktop
- Laptop
- Certification
- CE
- FCC
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
