- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type

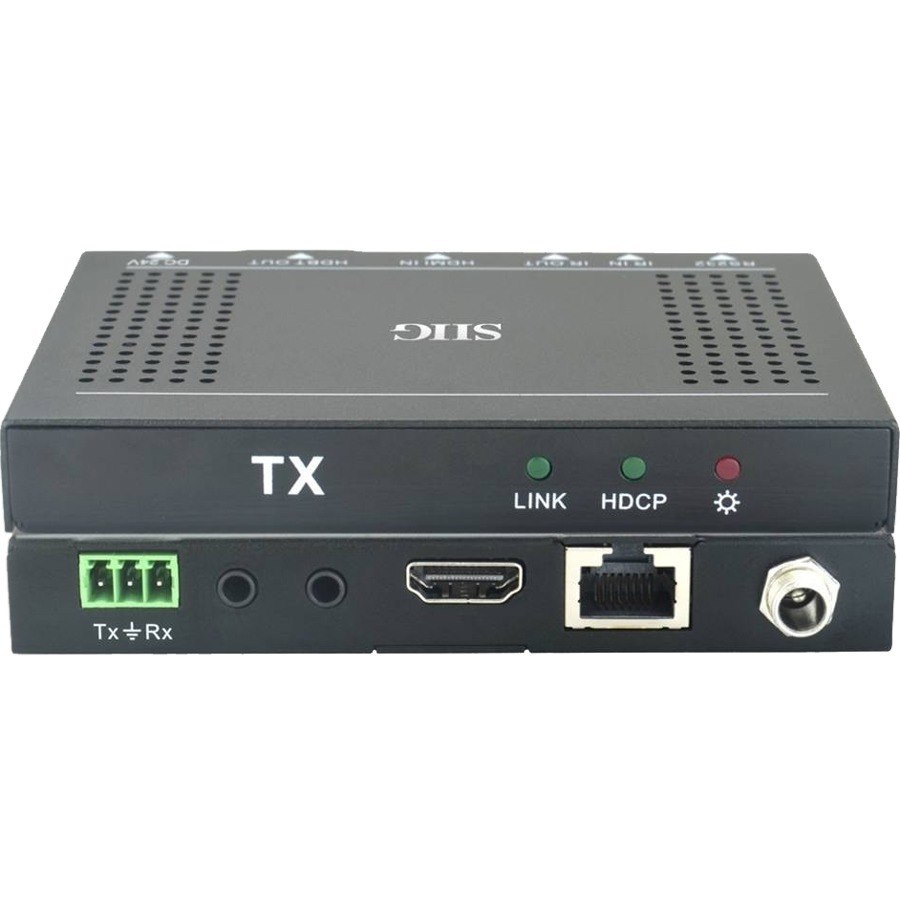

- Video Extender Transmitter
Transmits HDMI audio and video signals, RS232 control, IR control, PoH up to 70 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology
- 4K HDBaseT Transmitter unit designed to work in conjunction with other SIIG components
- Supports transmission distance up to 230ft (70m ) at 1080p and 131ft (40m) at 4K resolution
- Compliant with HDMI 1.4 and HDCP 2.2
- Supports up to 4K @30Hz YUV 4:2:0 and 1080p 3D
- Supports Bi-directional PoH function to power the Transmitter and Receiver using only one power adapter connected to either unit
- Supports CEC pass-through, Bi-directional IR, RS232 control
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Maximum Operating Distance
- 229.66 ft
- Video
- Graphics Modes
- 4K
- Maximum Video Resolution
- 4096 x 2160
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI In
- Yes
- Serial Port
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of HDMI Inputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 7
- Physical Characteristics
- Transmitter Height
- 0.64"
- Transmitter Width
- 4.52"
- Transmitter Depth
- 4.30"
- Form Factor
- Rack-mountable
- Transmitter Weight (Approximate)
- 10.72 oz
- Miscellaneous
- Package Contents
- HDMI HDBaseT 4K Transmitter (TX)
- Power Adapter
- 2 x Mounting Ears
- 4 x Screw Kit
- 4 x Plastic Cushions
- RS-232 Cable
- User Manual
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
