- General Information
- Manufacturer
- Proline
- Manufacturer Website Address
- http://www.prolineoptions.com
- Brand Name
- Proline
- Product Type
- Network Cable

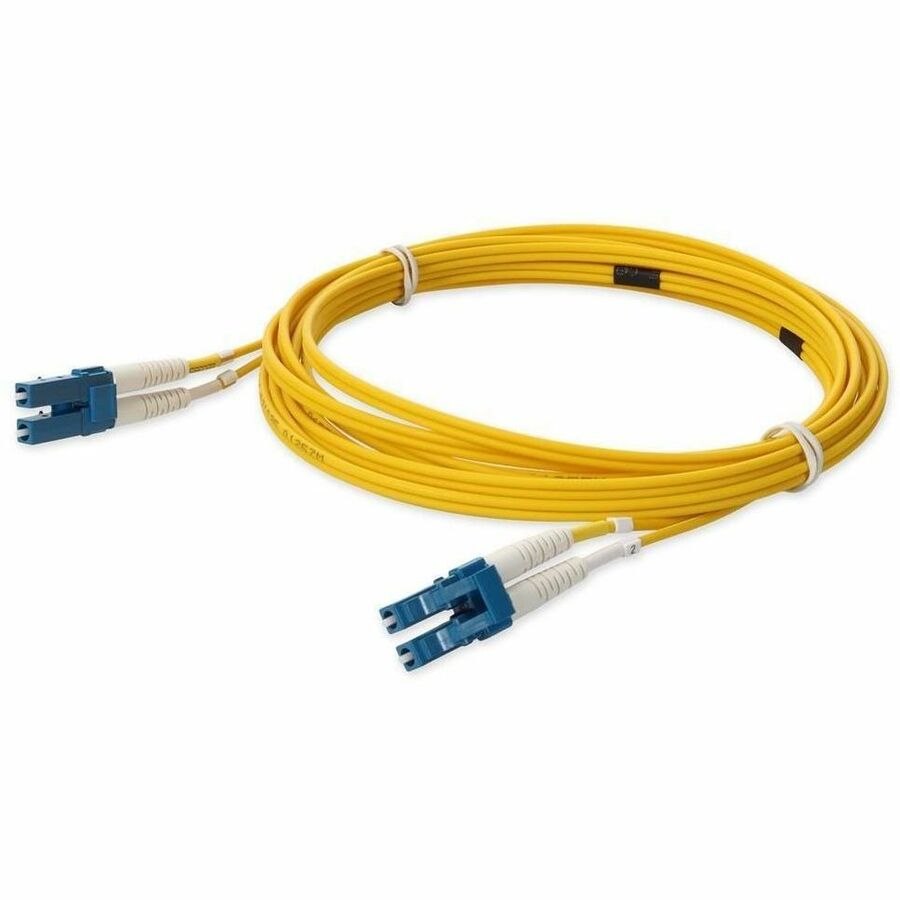

This is a 3.0m (9.8ft) LC (male) to LC (male) Aqua OS2 duplex LSZH-rated patch straight cable that is used for high speed data transfer. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. Duplex cabling provides two-strands of fiber and is most commonly used in applications that utilize one lane to transmit and one lane to receive. Our patch cables are 100% compliant for all of your networking needs and are guaranteed by federal law to not affect or void OEM warranties.
- Technical Information
- Cable Type
- Fiber Optic
- Cable Characteristic
- Patch Cable
- Cable Configuration
- Straight-through
- Fiber Optic Mode
- Single-mode
- Fiber Type
- Duplex
- Fiber Optic Cable Core/Cladding Specification
- 9/125 µm
- Fiber Category
- OS2
- Cable Length
- 9.84 ft
- Connector Type on First End
- LC Network - Male
- Connector Gender on First End
- Male
- Connector on First End Details
- 2 x LC Network - Male
- Connector Type on Second End
- LC Network - Male
- Connector Gender on Second End
- Male
- Connector on Second End Details
- 2 x LC Network - Male
- Jacket Type
- LSZH
- Device Supported
- Network Device
- Features
- Ultra Physical Contact (UPC)
- Physical Characteristics
- Color Family
- Yellow
- Product Color
- Yellow
