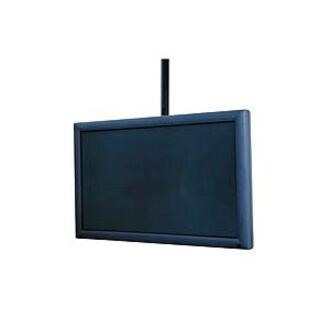

The SmartMount® PLCM-1 Ceiling Mounts utilize 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM-1 kit combines the PLCM-2 tilt box and an EXT13 fixed length 1.5" NPT column, to deliver a drop of 36" , -5°/+2° of adjustable tilt and 36° of swivel. When combined with a Peerless-AV® ceiling plate, and a universal or fixed display adaptor plate, it creates the perfect combination for flat panel ceiling mounting in sports facilities, airports, lobbies, or retail environments.
- General Information
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Website Address
- http://www.peerless-av.com
- Brand Name
- SmartMount®
- Product Series
- PLCM-1
- Packaged Quantity
- 1 Unit
- Product Type
- Ceiling Mount
- Warranty
- Limited Warranty
- 5 Year
- Product Information
- Device Supported
- Display
- Flat Panel Display
- Maximum Load Capacity
- 150 lb
- Minimum Screen Size Supported
- 10"
- Maximum Screen Size Supported
- 90"
- Features
- Cable Management
- Tilt
- Swivel
- Adjustable
- 360° Yaw
- Adjustable Tilt
- Hook
- Lightweight
- Orientation
- Landscape/Portrait
- Mount Pattern
- Universal
- Mount Profile
- Fixed
- Minimum Tilt Angle
- -5°
- Maximum Tilt Angle
- 20°
- Maximum Swivel Angle
- 360°
- Mount Function
- Cable Management
- Tilt
- Swivel
- Adjustable
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Finishing
- Powder Coated
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 75 x 75
- 100 x 100
- Product Material
- Steel
- Material Details
Aluminum Column
- Form Factor
- Ceiling Mountable
- Height
- 37"
- Width
- 5.60"
- Depth
- 3.54"
- Weight (Approximate)
- 5.30 lb
- Miscellaneous
- Package Contents
- Ceiling Mounts 36.0" Extension Column with Tilt Box for up to 90" Displays
- EXT103 Extension Column
- PLCM-2 Tilt Box
- Instructions
- Application/Usage
- Lobby
- Airport
- Retail
- Room
- Pipe
- Sports
- Certifications & Standards
- RoHS, TAA, VESA, UL
- Manufacturer Product Class
- Ceiling Mount
- Assembly Required
- Yes
- TAA Compliant
- Yes
- UL Listed
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
