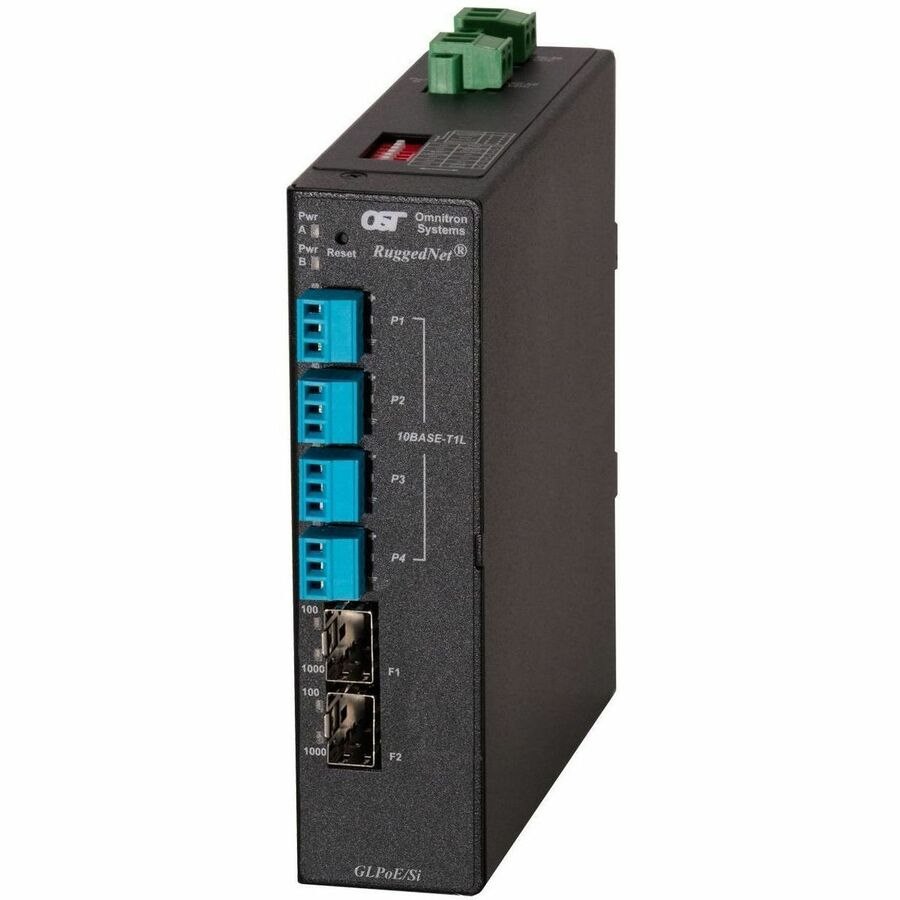

The RuggedNet GLPoE/Si is an unmanaged Industrial Single Pair Power over Ethernet (SPoE) switch that is IEEE 802.3cg compliant and features copper or fiber uplink ports and four single-pair 10BASE-T1L copper SPoE user ports.

The Single Pair Power over Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPoE terminal ports or IEC 63171-2 SPoE ports and two 10/100/1000 RJ-45 or 100/1000 fiber SFP uplink ports.

The GLPoE/Si SPoE user ports detect and classify 30VDC class 10 - 12 and 58VDC class 13 -15 powered devices through DIP-switch selection.

The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.

Dual Device mode that enables the module to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GLPoE/Si provides separate and independent data traffic paths between the two uplink ports and four user ports.

Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports. Redundant fiber or copper uplinks provide protection and restoration for critical applications. In the event of a failure on the primary uplink port, the switch will failover to the secondary uplink port. Once the failed uplink port has been restored, the switch will return to the primary uplink port. For daisy-chain applications, the second uplink port can be used to cascade multiple switches.

The GLPoE/Si modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the switch for ease of identification and use.

The switch is available with Small Form Pluggable (SFP) transceiver receptacle ports or 10/100/1000 RJ-45 ports. The SFP ports support 10/100/1000BASE-T and 1000BASE-T copper transceivers and 100Mbps and 1000Mbps standard, CWDM and DWDM fiber transceivers in a variety of distances and fiber types.

The switch can be wall or rack mounted using a wall mount bracket (8260-3) and shelf (8260-0) or DIN-rail mounted using the included DIN-rail mounting clip. The switch is available with dual DC input power.

• General Information
• • Manufacturer
  • Omnitron Systems
  • Manufacturer Website Address
  • http://www.omnitron-systems.com
  • Brand Name
  • Omnitron Systems
  • Product Line
  • RuggedNet
  • Product Series
  • GLPoE/Si
  • Package Type
  • Retail
  • Product Type
  • Ethernet Switch

• Warranty
• • Limited Warranty
  • Lifetime
