M.2 Fast Ethernet Fiber Network Interface Card for Dell OptiPlex™ 7070 & 7060/5060/3060 Micro PCs
100Base-FX

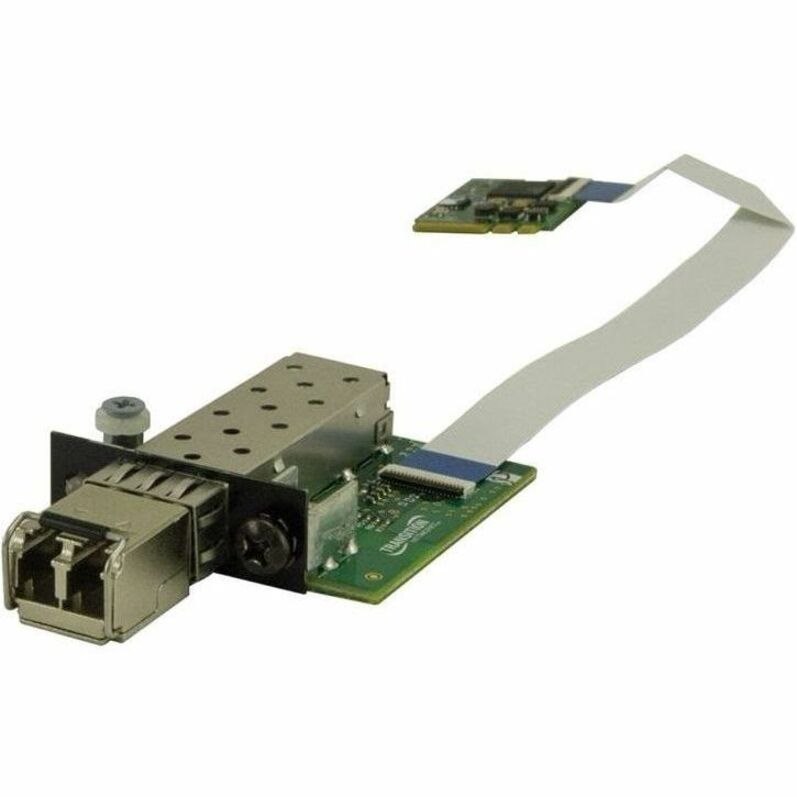

Lantronix M.2 Fast Ethernet Fiber Network Interface Card (NIC) provides a fiber optic interface for the Dell OptiPlex™ 7060, 5060, and 3060 Micro PCs. The NM2-FXS-2230-SFP-201 consists of a M.2 NIC that installs into the OptiPlex Micro PC's M.2 "A or E keyed" interface, a fiber optic adapter that installs into the OptiPlex Micro PC's Option port, and a 20-pin Flat Flex Cable (FFC) that connects the NIC to the fiber adapter. The fiber optic adapter is an open SFP with a 100Base-FX to SGMII SFP Module (included).
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Transition Networks
- Packaged Quantity
- 1
- Product Type
- Fast Ethernet Card
- Interfaces/Ports
- Host Interface
- PCI Express
- Total Number of Ports
- 1
- I/O Expansions
- Expansion Slot Type
- SFP
- Media & Performance
- Media Type Supported
- Optical Fiber
- Maximum Data Transfer Rate
- 100 Mbit/s
- Network & Communication
- Network Technology
- 100Base-FX
- Physical Characteristics
- Form Factor
- Plug-in Card
- Height
- 0.1"
- Width
- 0.9"
- Depth
- 1.2"
- Weight (Approximate)
- 1.76 oz
- Miscellaneous
- Application/Usage
- PC
- Operating System Compatibility
- Windows 10
- Windows 8
- Windows 8.1
- Windows 7
- Linux
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
