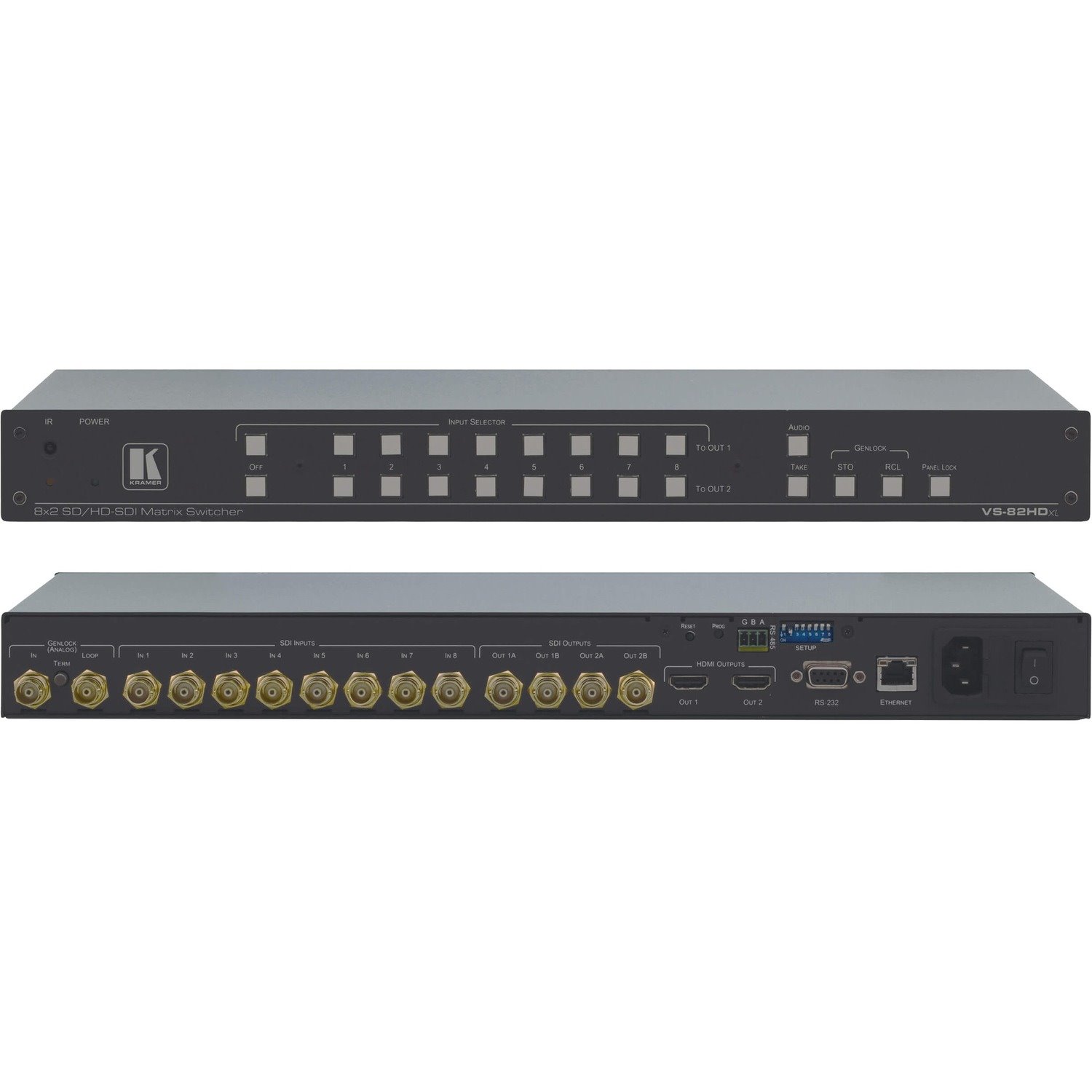

The Kramer VS-82HDxl is a true 8 x 2 matrix switcher for SDI signals. The unit can switch any one of the eight SDI inputs to one or both sets of triple outputs (two-channel SDI and HDMI).
- Max. Data Rate - 3Gbps.
- HDTV Compatible.
- Multi-Standard Operation - SDI (SMPTE 259M/344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M).
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
- Looping Input.
- Supports ANC Data - Embedded audio, teletext, time code, etc.
- Cable Equalization - Up to 350m for SD signals, 140m for 1.5GHz HD signals and 120m for 3GHz 3G signals.
- Clean Switching Feature - When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
- Versatile Genlocking - Can use either an analog signal or any of the SDI input signals for genlocking. If the selected genlock input signal is unavailable, the VS-82HDxl automatically selects the best available SDI input for the genlock signal.
- Memory Locations - Stores 16 multiple switches as presets to be recalled and executed when needed.
- Front Panel Control Lockout.
- Flexible Control Options - Front panel, RS-232/RS-485 & Ethernet.
- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Type
- Audio/Video Switchbox
- Warranty
- Limited Warranty
- 7 Year
- Technical Information
- Connectivity Technology
- Cable
- Number of Input Devices Supported
- 8
- Device Supported
- Display
- Projector
- Camcorder
- Computer
- Number of Displays Supported
- 2
- Interfaces/Ports
- HDMI Out
- Yes
- Connectivity (RJ-45)
- Yes
- Number of Connectivity (RJ-45) Ports
- 1
- Number of HDMI Outputs
- 2
- Media & Performance
- Media Type Supported
- Twisted Pair
- Maximum Operating Distance
- 1148.29 ft
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.8"
- Width
- 19"
- Depth
- 7.2"
- Weight (Approximate)
- 3.75 lb
- Miscellaneous
- Package Contents
- 8x2 3G HD-SDI Matrix Switcher
- Power Cord
- Rack Ears
