- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- Aruba
- Product Series
- CX 6200
- Packaged Quantity
- 1
- Product Type
- Ethernet Switch

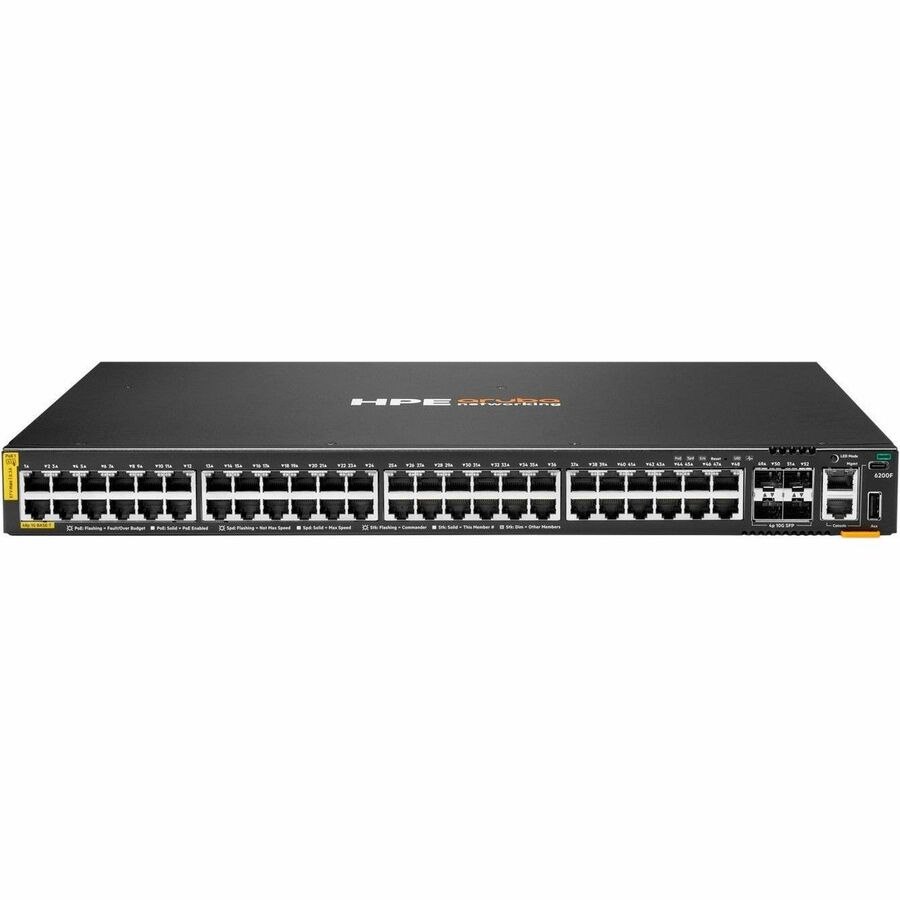

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks.
Features | Maximize your HPE Aruba Networking CX 6200 Switch Series | What's New
- Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
- Up to 384 ports of scalability with 8-member VSF stacking. 24 and 48-port fixed and modular switches can stack together with easy to deploy through the CX Mobile app.
- Models include modular switches with 1/10 GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10 GbE SFP+ or 1 GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
- Intelligent monitoring and visibility via HPE Aruba Networking CX Network Analytics Engine. HPE Aruba Networking Switch Multi-Edit Software support for automation, configuration and verification.
- Dynamic Segmentation enables secure access for users and IoT.
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- VSF Stacking
- Intelligent monitoring
- Hot-swappable
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Uplink Port
- Yes
- Modular
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 48 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port
- 4 x 1/10 SFP Gigabit Ethernet Expansion Slot
- 1 x Out-of-Band Management Port
- 1 x USB Type-A Host Port
- 1 x RJ-45 Console Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP
- SFP+
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1ab
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 740 W
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- AC
- PoE+
- PoE
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 76 W
- Physical Characteristics
- Color Family
- Gray
- Product Color
- Gray
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.4"
- Depth
- 12.9"
- Weight (Approximate)
- 11.24 lb
- Miscellaneous
- Application/Usage
- IoT Devices
- Campus
- Security Camera
- Business
- Enterprise
- Network
- Wireless Access Point
- Certifications & Standards
- AS/NZS CISPR 32:2015 Class A
- CAN/CSA C22.2 No. 62368-1:19 Third Edition
- CISPR 32:2016 Class A
- CISPR 35: 2016
- CNS 15598-1:2020
- CNS 15936: 2020 Class A
- EN 55032:2015 /A11:2020, Class A
- EN 55035:2017+A11:2020
- EN 60825-1:2014
- EN 61000-3-2
- EN 61000-3-2:2019
- EN 61000-3-3
- EN 61000-3-3:2013
- EN 62368-1:2014+A11:2017
- EN 62368-1:2020+A11:2020
- EN 63000:2018, FCC 47 CFR part 15B:2021 Class A
- GB 4943.1-2022, ICES-003 Issue 7: 2020 Class A
- IEC 60825-1:2014 Class 1
- IEC 61000-3-2, IEC 61000-3-3
- IEC 61000-4-11, IEC 61000-4-2
- IEC 61000-4-3, IEC 61000-4-4
- IEC 61000-4-5, IEC 61000-4-6
- IEC 61000-4-8
- IEC 62368-1: 2014 Second Edition
- IEC 62368-1:2018 Third Edition
- IEC 63000:2018
- KC 62368-1: 2021-08
- KS C 9832, Laser Class 1
- UL 62368-1 Third Edition
- VCCI-CISPR 32 Class A
- Energy Star
- No
- TCO Certified
- No
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
