- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- JBL Professional
- Product Series
- AE
- Product Type
- Speaker

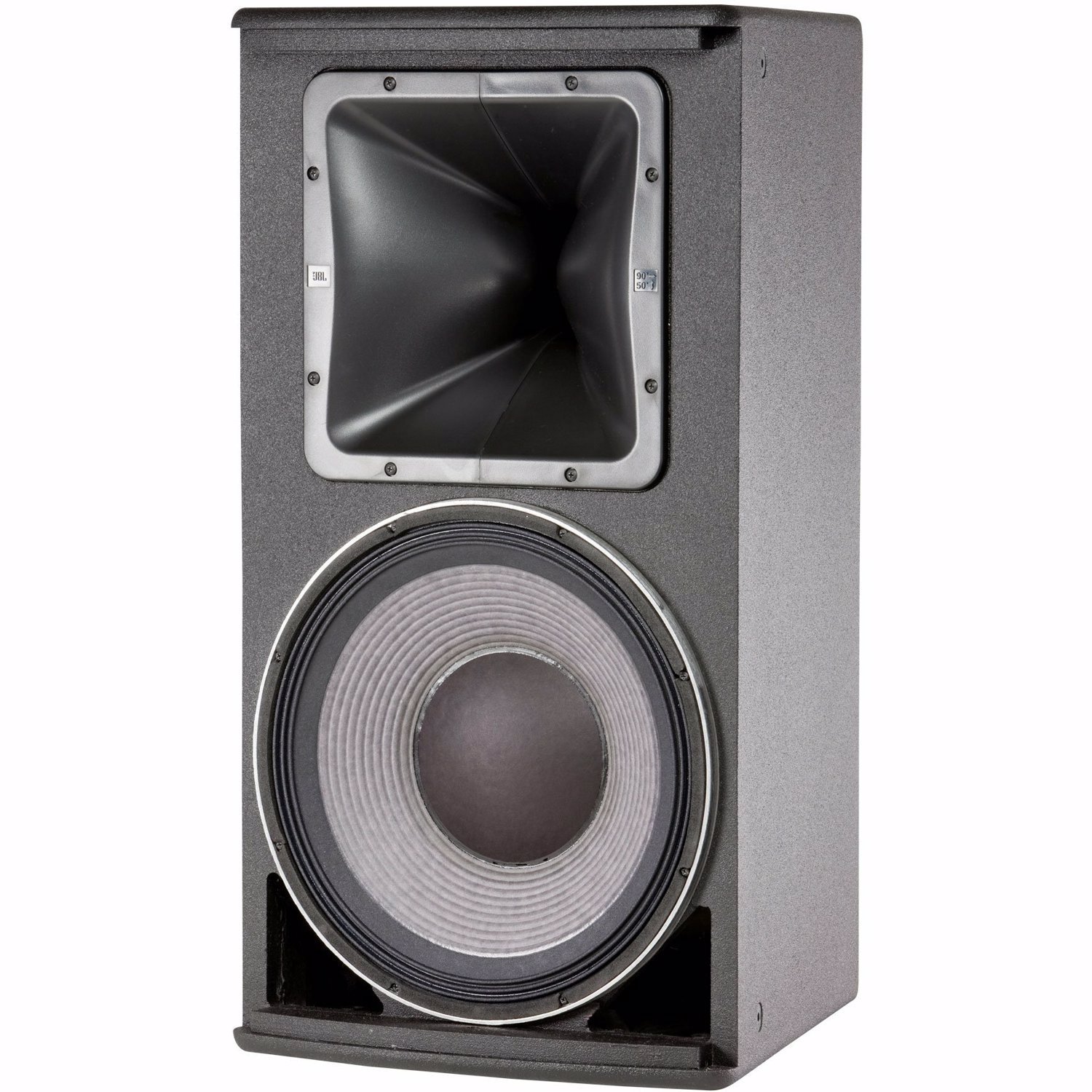

The AM7215/95 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Crossover Type
- 2-way
- RMS Output Power
- 600 W
- PMPO Output Power
- 2400 W
- Woofer Driver Size
- 15"
- Tweeter Driver Size
- 1.50"
- Minimum Frequency Response
- 40 Hz
- Maximum Frequency Response
- 20 kHz
- Impedance
- 8 Ohm
- Maximum Crossover Frequency
- 1.20 kHz
- Sound Pressure Level
- 133 dB
- Sensitivity
- 96 dB
- Physical Characteristics
- Product Color
- White
- Product Material
- Birch Plywood
- Foam
- Perforated-steel
- Height
- 30.8"
- Width
- 16.5"
- Depth
- 19.80"
- Weight (Approximate)
- 60 lb
- Miscellaneous
- Certifications & Standards
- Mil-Std 810
- IP-x3 per IEC529
