- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- Martin
- Product Series
- ELP
- Product Type
- Decorative Light

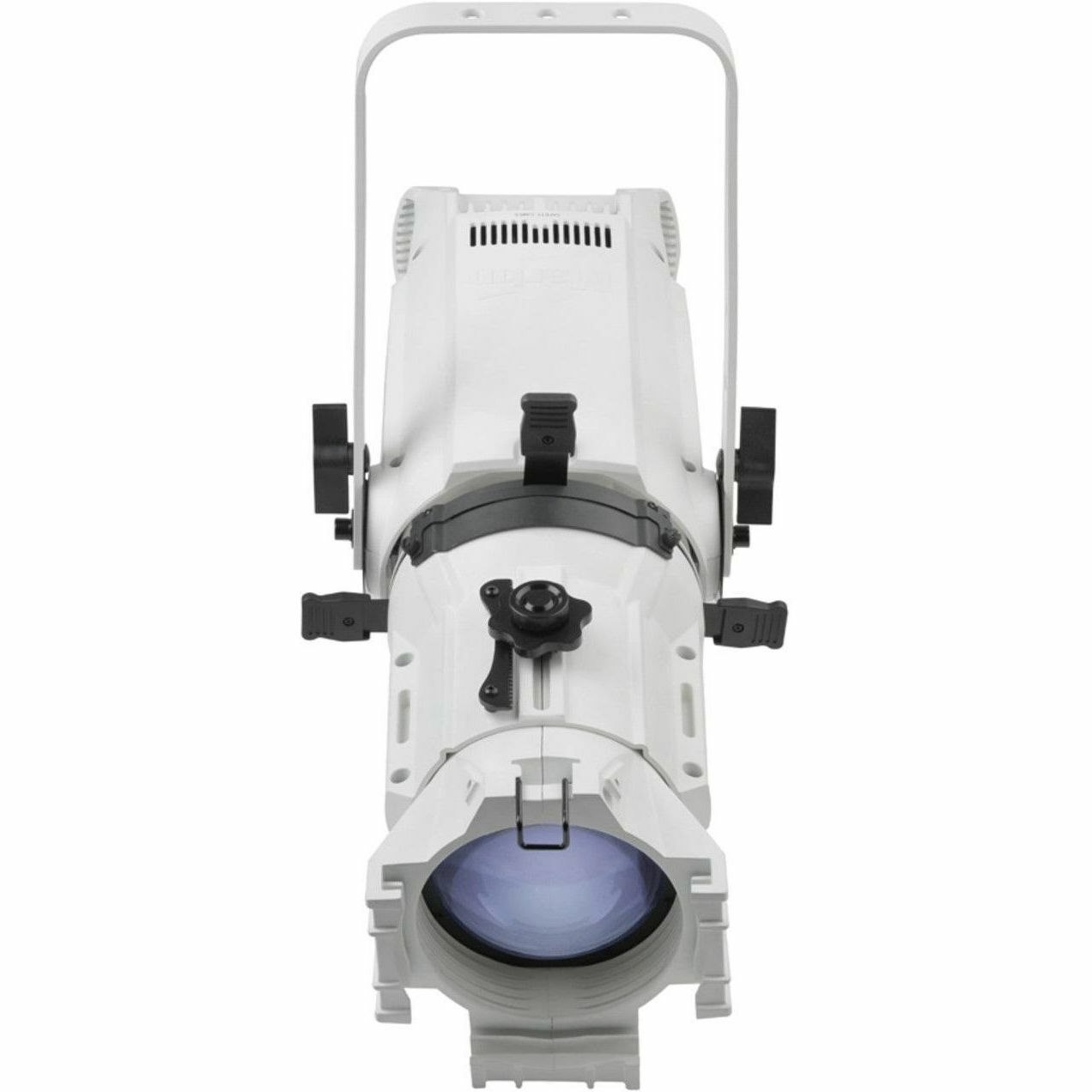

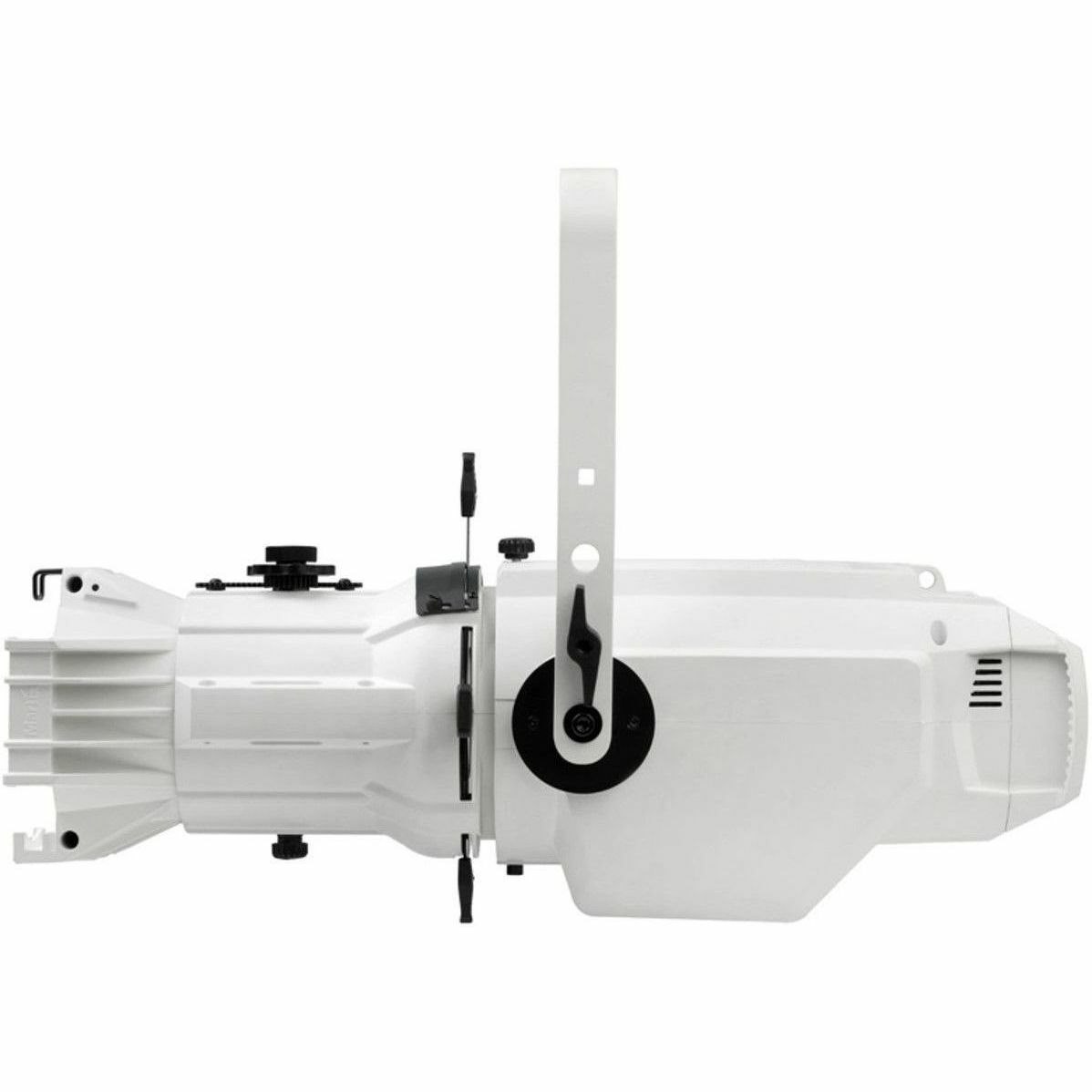

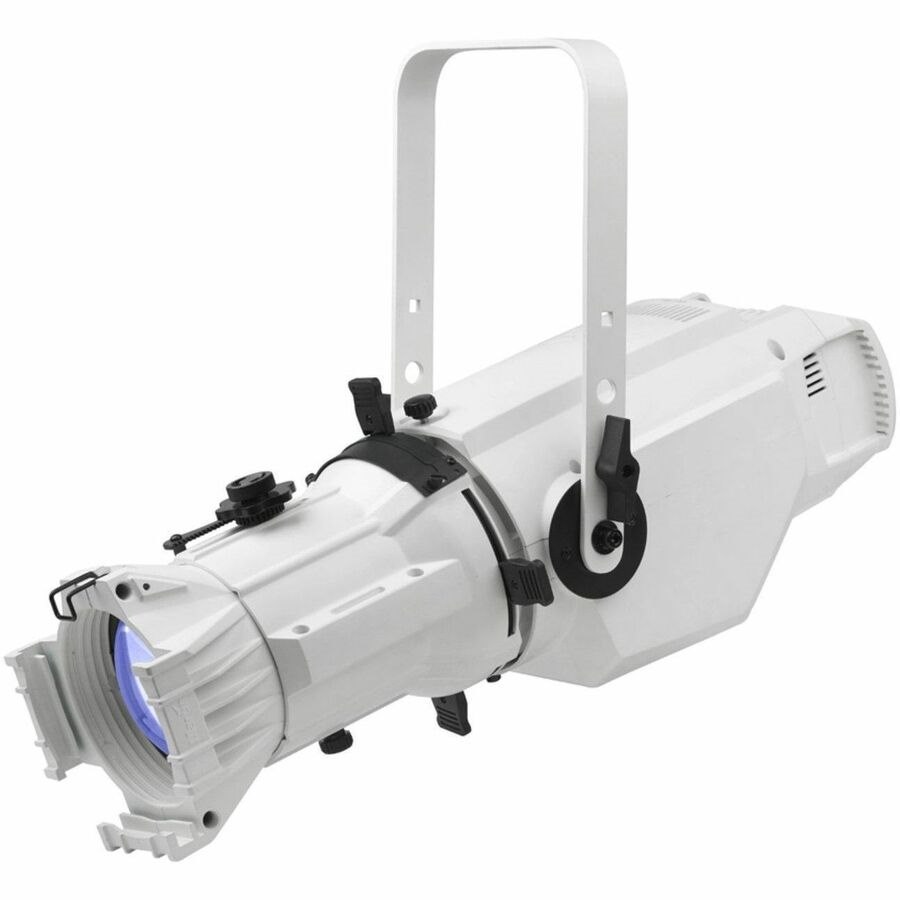

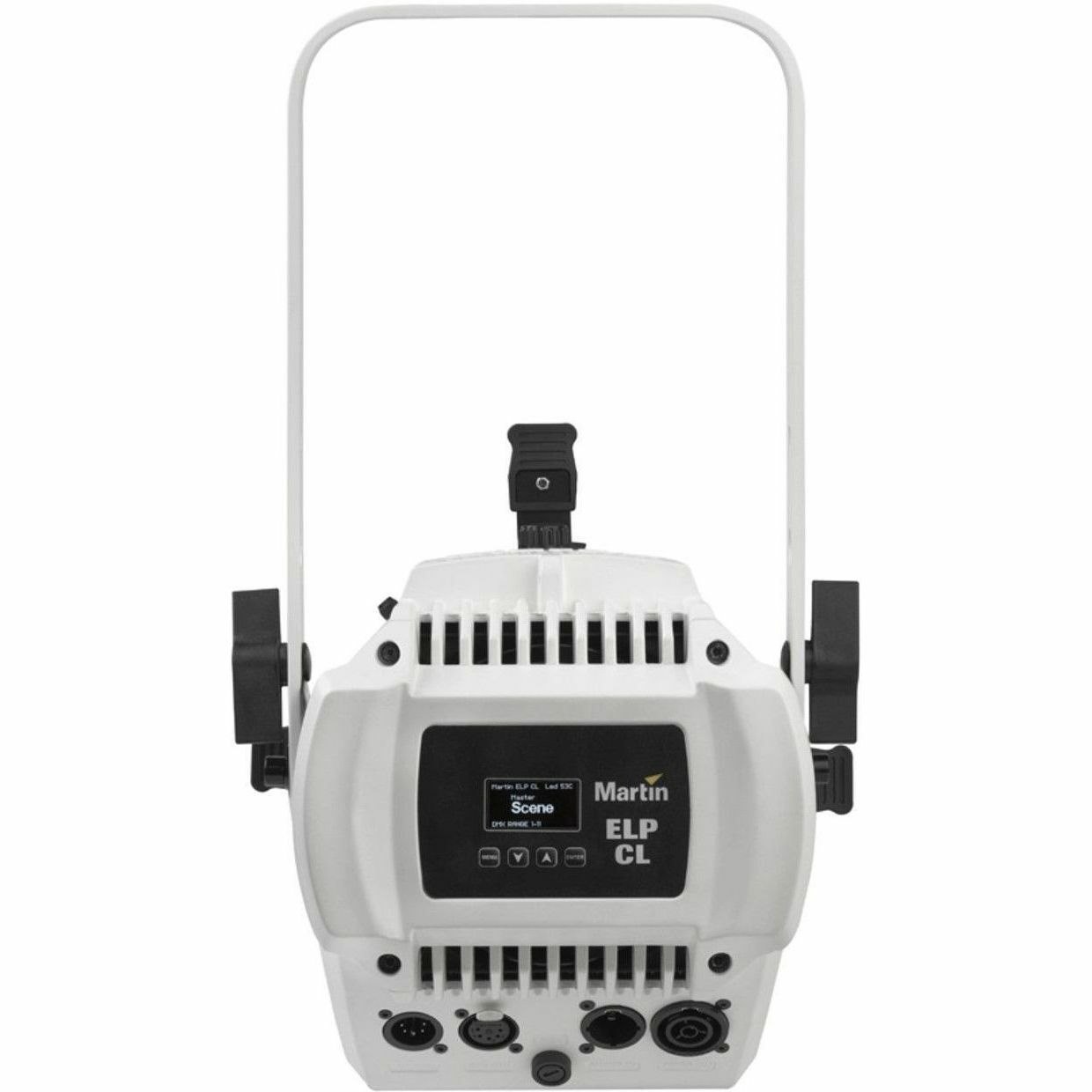

Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you've come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus-an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.
Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP CL the leading Color LED ellipsoidal fixture in its class. ELP Zoom Lenses expand the versatility of the line with two industry-standard beam ranges and two housing color variants available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.
Martin recommends using official Martin-branded ELP accessories for the highest possible performance. While we strive to ensure compatibility with third-party accessories, we cannot guarantee optimal performance and recommend that the user makes an evaluation of such an accessory before purchasing.
- Product Information
- Bulb/Tube Type
- LED
- Light Color
- RGBLA
- Light Output
- 6900 lm
- Mount Type
- Bracket Mount
- Application/Usage
- Industry
- Indoor
- Features
- Ergonomic Design
- Flexible
- Flicker-free
- Color Temperature Supported
- 17540.3°F (9726.8°C)
- Dimmable
- Yes
- Power Description
- Power Source
- AC Supply
- Input Voltage
- 120 V AC
- 230 V AC
- Power Consumption
- 259 W
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Product Material
- Die-cast Aluminum
- Height
- 10"
- Width
- 10.2"
- Weight (Approximate)
- 16.98 lb
- Miscellaneous
- Package Contents
- ELP Decorative Light
- Power input cable (0.75mm2, 18 AWG)
- Bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)
- Mounting bracket
- User manual
- Ingress Protection (IP) Rating
- IP20
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
