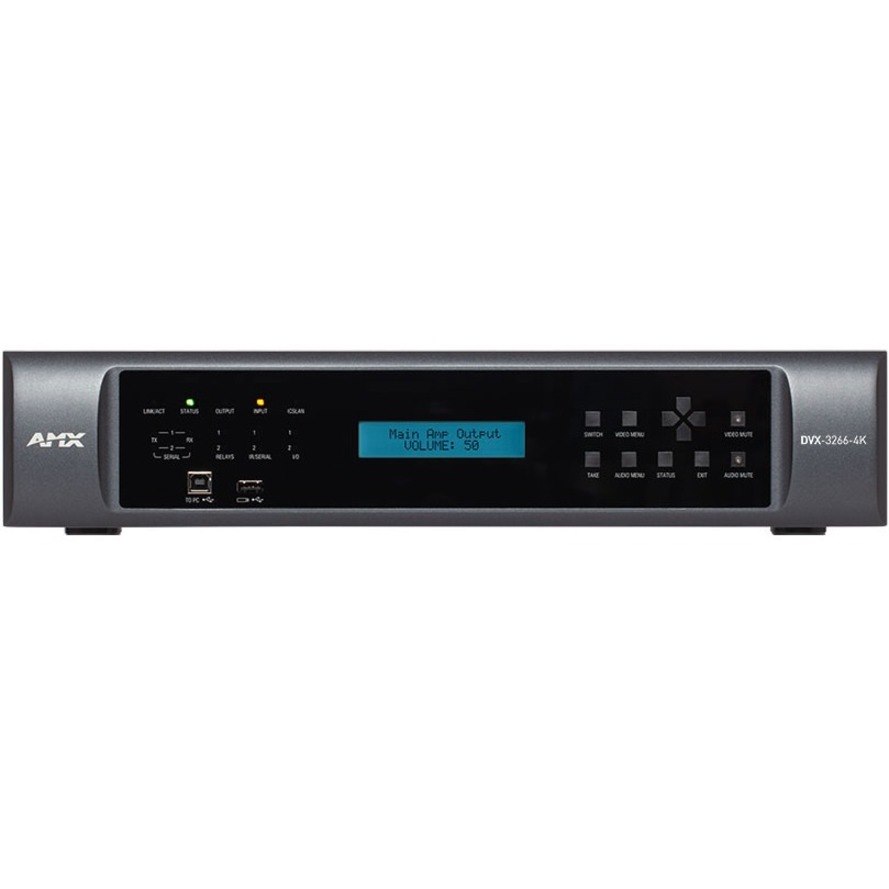

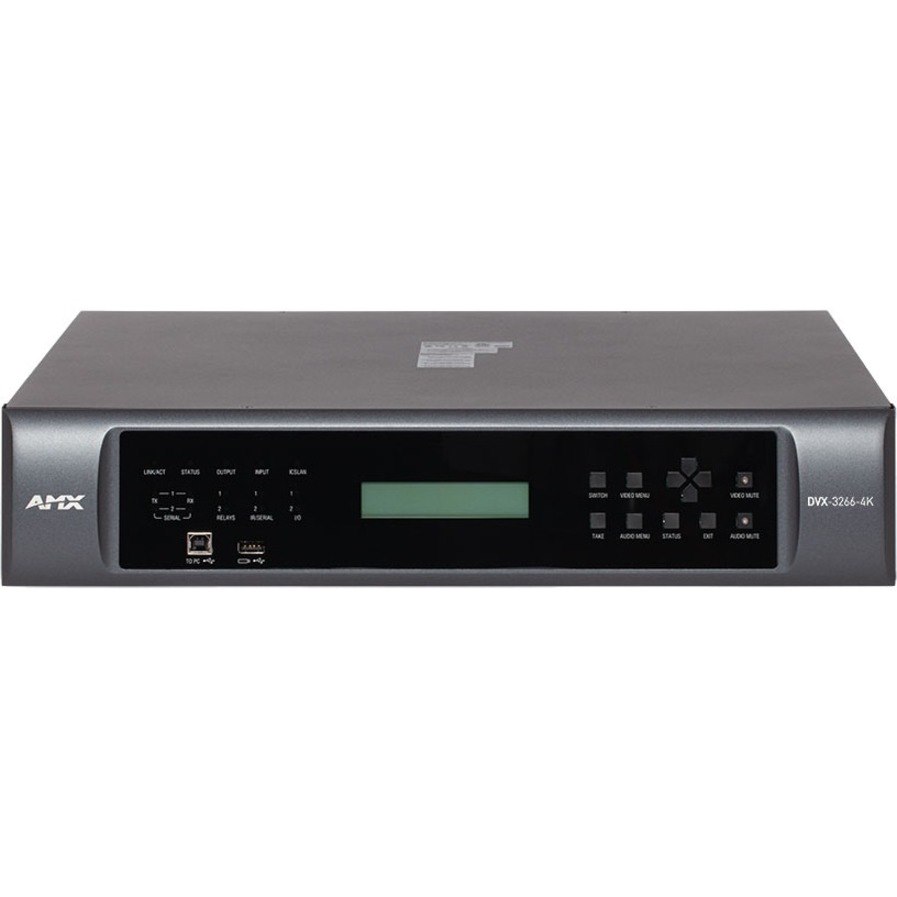

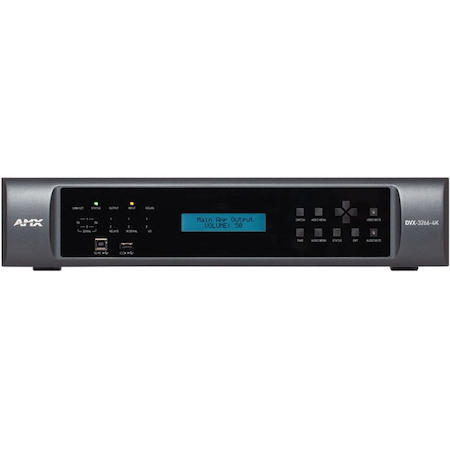

AMX DVX-3266-4K-TAA Audio/Video Switchbox

  • Part: 1977060
  • Model: AMX-FG1906-0402
$6,423.00

Availability

In Stock

The DVX-3266-4K 8x4+2 All-In-One Presentation Switcher is a unified audio, video, and control device that replaces a rack full of equipment for a solution that is less expensive, easier to install, and more reliable.

The compact 2U Presentation Switcher supports the latest video technologies to deliver full 4K60 4:4:4 and HDR video on every output. Audio technology from Crown, BSS, and dbx provide the legendary audio quality for which Harman products are known and the inclusion of Dante audio makes it possible to distribute that audio over the network.

The integrated NX processor provides extensive security features and technologies such as a mobile friendly HTML5 web interface, an ICSLan isolated network, and automatic binding of DXLink endpoints.

DVX 4K60 delivers the lowest Total Cost of Ownership in the industry thanks to ease of support, maintenance, and configuration as well as reduced hardware and cabling costs.

Common Applications
The DVX-3266-4K is ideally suited for medium to large and complex conference rooms, classrooms, and auditoriums that can benefit from 4K60 4:4:4 resolution. It's four DXLink inputs enable support for dual room applications, where multiple collaboration spaces share a single DVX or the AV rack is not near source devices and displays. DVX's small size also makes it a perfect solution for any room or facility with space constraints, especially those that lack space in equipment racks.

  • General Information
    • Manufacturer
    • Harman International Industries, Inc
    • Manufacturer Website Address
    • http://www.harman.com
    • Brand Name
    • AMX
    • Product Type
    • Audio/Video Switchbox

  • Technical Information
    • Connectivity Technology
    • Cable
    • Number of Input Devices Supported
    • 8
    • Device Supported
    • Display
    • Number of Displays Supported
    • 2
  • Video
    • Graphics Modes
    • 4K
    • Maximum Video Resolution
    • 4096 x 2160
  • Interfaces/Ports
    • HDMI In
    • Yes
    • HDMI Out
    • Yes
    • USB
    • Yes
    • Connectivity (RJ-45)
    • Yes
    • Number of Connectivity (RJ-45) Ports
    • 2
    • Number of USB Ports
    • 6
    • Number of HDMI Inputs
    • 4
    • Number of HDMI Outputs
    • 4
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
  • Physical Characteristics
    • Form Factor
    • Desktop
    • Height
    • 3.5"
    • Width
    • 17.3"
    • Depth
    • 19"
    • Weight (Approximate)
    • 26.96 lb
  • Miscellaneous
    • Package Contents
      • DVX-3266-4K-TAA Audio/Video Switchbox
      • 1 x Power Cord, US
      • 2 x Front Rack Mounting Bracket (Attached)
      • 4 x Rubber foot (Attached)
      • 2 x IR Emitter
      • 3 x 4-position, 3.5mm Phoenix Male Connector
      • 8 x 3-position, 3.5mm Phoenix Male Connector
      • 4 x 5-position, 3.5mm Phoenix Male Connector
      • 1 x 3-position, 5.08mm Phoenix Male Connector
      • 1 x 4-position, 5.08mm Phoenix Male Connector
    • Environmentally Friendly
    • Yes
    • TAA Compliant
    • Yes
