- General Information
- Manufacturer
- GIGABYTE Technology, Inc
- Manufacturer Website Address
- http://www.gigabyte.us
- Brand Name
- GIGABYTE
- Product Line
- Ultra Durable
- Product Type

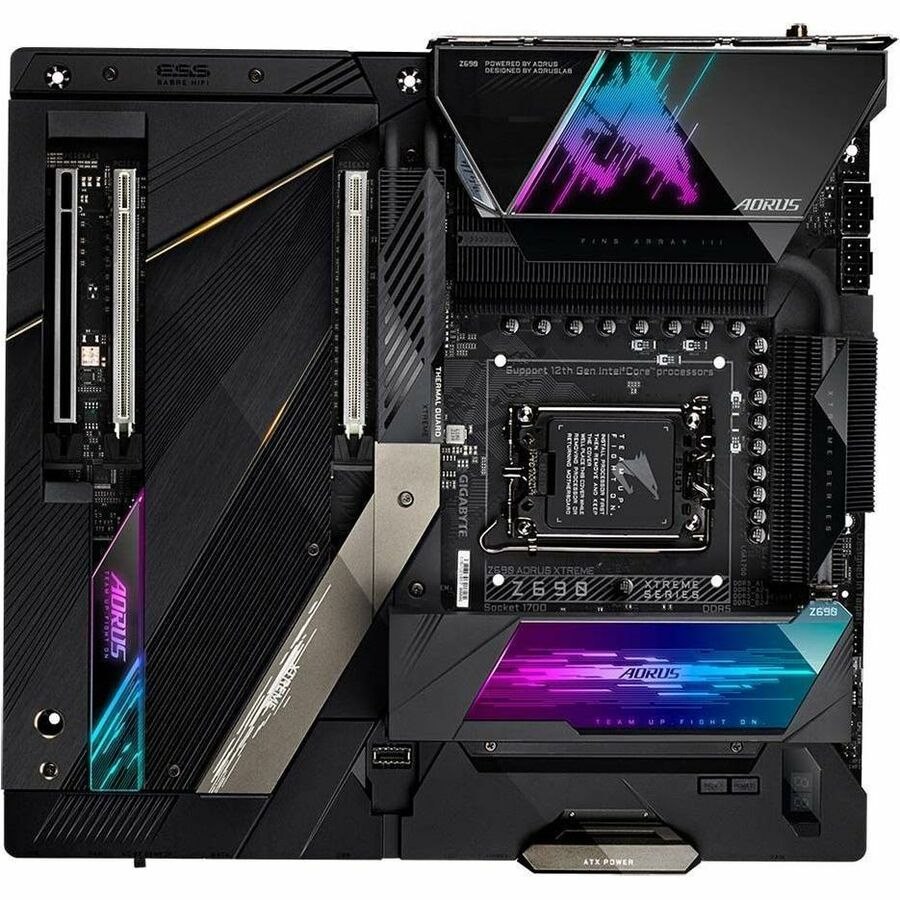

- Gaming Desktop Motherboard
XTREME MEMORY
GIGABYTE Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.
THERMAL REACTIVE ARMOR
GIGABYTE Z690 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Z690
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 12th Gen
- 13th Gen
- 14th Gen
- Processor Supported
- Celeron
- Pentium Gold
- Core
- Multi GPU Supported
- CrossFire
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 256 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 4800 MHz
- 4000 MHz
- 6600 MHz
- 6400 MHz
- Intel Optane Memory Ready
- Yes
- Error Checking
- ECC
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.2
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- 10Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax
- I/O Expansions
- Total Number of Expansion Slots
- 3
- PCI Express Standard
- PCI Express 3.0
- Total Number of PCI Express Slots
- 3
- Number of PCI Express x16 Slots
- 3
- Interfaces/Ports
- Total Number of USB Ports
- 12
- Number of USB 3.2 Gen 2 Type-A Ports
- 10
- Number of USB 3.2 Gen 2 Type-C Ports
- 2
- S/PDIF
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 2
- Thunderbolt
- Yes
- Number of Thunderbolt 4 Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 4
- Total Number of Onboard USB Ports
- 9
- Number of Onboard USB 2.0 Ports
- 4
- Physical Characteristics
- Form Factor
- Extended ATX
- Width
- 12"
- Depth
- 11.2"
