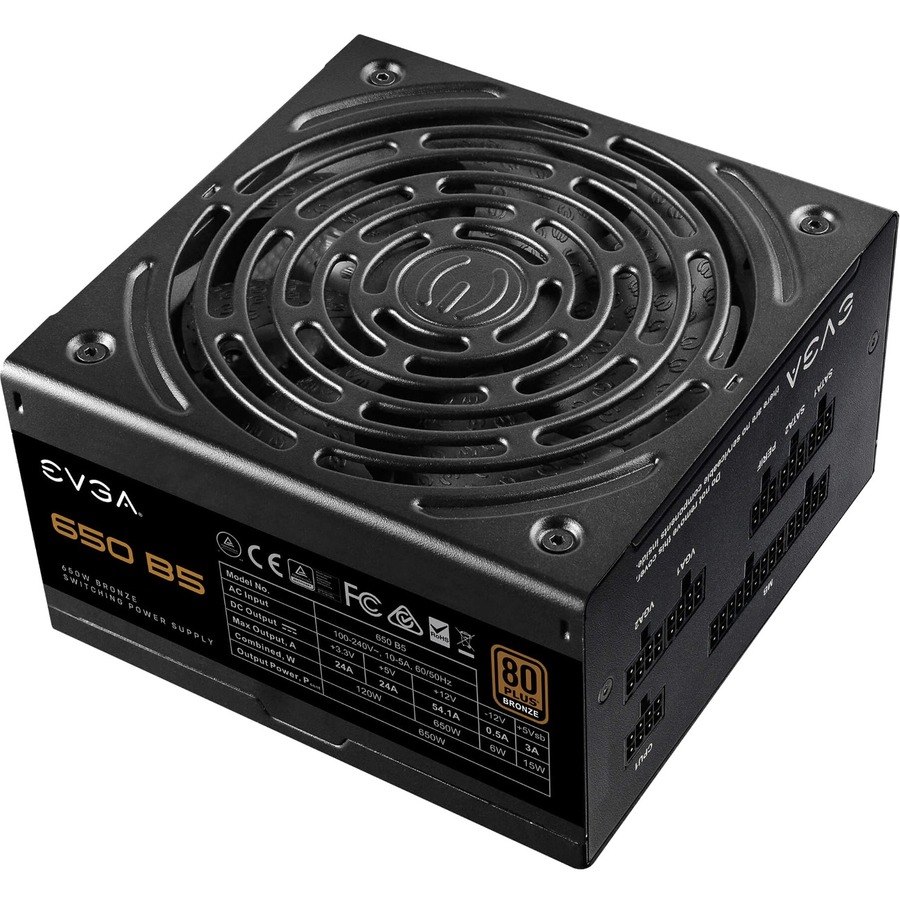

Introducing the EVGA B5 power supplies, the latest 80PLUS Certified Bronze power supplies to carry on the EVGA tradition of reliability, performance, and affordability. The B5 power supplies start with the most important standard for reliability - a Japanese main capacitor. Next, the B5 power supplies provide maximum flexibility by using a small chassis and a fully modular design. The ultra-quiet 135mm Fluid-Dynamic Bearing fan becomes silent when coupled with EVGA ECO mode to turn off the fan in medium to low loads. Last, but not least, the B5 power supplies have a full suite of protections and a 5-year limited warranty that you've come to know and expect from EVGA.
- General Information
- Manufacturer
- EVGA Corporation
- Manufacturer Website Address
- http://www.evga.com
- Brand Name
- EVGA
- Product Series
- B5
- Product Type
- Power Supply
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Specification Compliance
- ATX12V/EPS12V
- Efficiency
- 85%
- Number of Fans
- 1
- Modular
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- Output Voltage Detail
- 3.3 V DC @ 24 A
- 5 V DC @ 24 A
- 12 V DC @ 54.1 A
- 12 V DC @ 500 mA
- 5 V DC @ 3 A
- Output Current
- 24 A
- 54.10 A
- 500 mA
- 3 A
- Output Power
- 650 W
- Physical Characteristics
- Form Factor
- Internal
- Height
- 3.4"
- Width
- 5.9"
- Depth
- 5.9"
- Miscellaneous
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- 80 Plus Bronze
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 3 (ErP Lot 3)
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
