- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.eaton.com
- Brand Name
- Eaton
- Product Line
- BladeUPS
- Product Type
- Double Conversion Online UPS

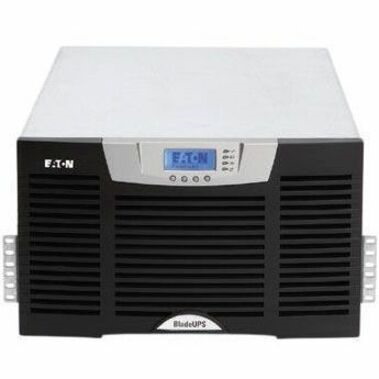

BladeUPS uninterruptible power system
Designed specifically for high-density computing environments, the Eaton® BladeUPS® delivers 5, 8 or 12 kW of efficient, reliable power in only 6U of standard rack space, including batteries. Expand capacity by combining 12 kW modules in a building block fashion to deliver 60 kW (N+1) from a single rack enclosure. This powerful configuration delivers higher power density than competitive, modular solutions, while dissipating only one-third of the heat.
The standard internal batteries provide needed ridethrough power until an auxiliary power source takes over or systems are gracefully shut down. Extend runtime up to 94 minutes at full load (or 250 minutes at half load) with extended battery modules (EBMs).
- Warranty
- Limited Warranty
- 18 Month
- Technical Information
- Plug/Connector Type
- Hard Wire 4-wire (3PH + G)
- Receptacle Type
- Hard Wire 4-wire (3PH + G)
- Protection Type
- Surge
- Phase
- Three Phase
- Application/Usage
- Generator
- Mission Critical Equipment
- Data Center
- PBX System
- VoIP
- Network Closet
- IT Equipment
- Computer
- Efficiency
- 98%
- Power Description
- Load Capacity (VA)
- 12 kVA
- Load Capacity (Watt)
- 12 kW
- Input Voltage
- 208 V AC
- 230 V AC
- Input Voltage Range
- 180 V AC - 265 V AC
- Output Voltage
- 208 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Output Power Factor
- 0.9
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- Dry Contact
- INDGW-X2 Card
- Web/SNMP
- Alarm
- Low Battery
- Controls/Indicators
- Status Indicators
Four status-at-a-glance LEDs
- Battery Information
- DC System Voltage
- 240 V DC
- Battery Characteristics
- VRLA/AGM
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 4.70 Minute
- Backup/Run Time (Half Load)
- 13 Minute
- Replaceable Battery
- Yes
- Environmental Conditions
- Thermal Dissipation
- 371.03 W
- Physical Characteristics
- Form Factor
- Rack-mountable
- Rack Height
- 6U
- Height
- 10.3"
- Width
- 17.4"
- Depth
- 28.4"
- Weight (Approximate)
- 135 lb
- Miscellaneous
- Package Contents
- BladeUPS 12kVA Rack-mountable UPS
- Software Suite CD
- Certifications & Standards
- UL1778
- cUL
- FCC Part 15 Class A
- ANSI C62.41, Cat B-3 EN 62000-4-5
- EN 61000-3-2
- EN 61000-3-3
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-8
- Software Included
- Intelligent Power Manager supervisory software and Intelligent Power Protector protection software
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
