- General Information
- Manufacturer
- Cooler Master Co., Ltd
- Manufacturer Website Address
- http://www.coolermaster-usa.com
- Brand Name
- Cooler Master
- Product Line
- MWE Gold
- Product Type
- Power Supply

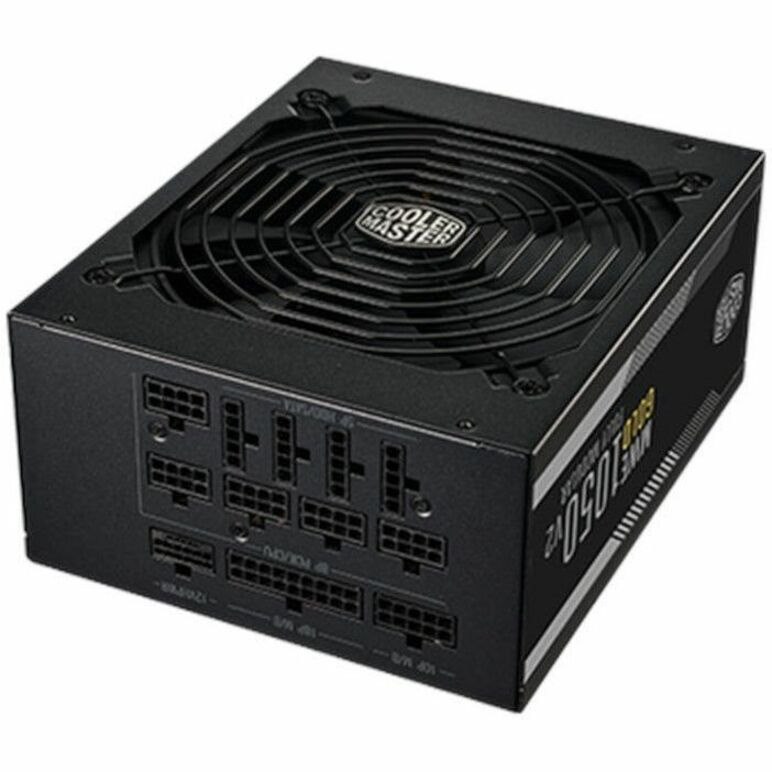

FULLY MODULAR 80 PLUS GOLD CERTIFIED ATX POWER SUPPLY
MWE Gold 1050/1250 -V2 brings optimal performance for a classic configuration. The MWE Gold 1050/1250 -V2 power supply features virtue of 80 PLUS Gold efficiency, fully modular cabling, and a 140mm silent fan, fully support ATX3.0 with 600W 12VHPWR connectors. Together, Cooler Master provides the power supply complete with high efficiency and reliability to improve your PC experience.
- Warranty
- Limited Warranty
- 10 Year
- Technical Information
- Specification Compliance
- ATX 3.0
- Efficiency
- 90%
- Power Factor Correction (PFC)
- Active
- Number of Fans
- 1
- Fan Diameter
- 140 mm
- Protection Type
- Over Voltage
- Over Power
- Short Circuit
- Over Current
- Under Voltage
- Over Temperature
- Inrush Current
- Modular
- Yes
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Number of +12V Rails
- 1
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail
- 3.3 V DC @ 20 A
- 5 V DC @ 20 A
- 12 V DC @ 87.5 A
- -12 V DC @ 0.3 A
- 5 V SB @ 3 A
- Output Power
- 1050 W
- Input Frequency
- 60Hz
- Interfaces/Ports
- Number of SATA Power Connectors
- 12
- PCI Express Connector
- Yes
- Number of (6+2 pin) PCI Express Power Connectors
- 3
- Number of (4+4 pin) CPU Power Connectors
- 1
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Internal
- Height
- 3.4"
- Width
- 5.9"
- Weight (Approximate)
- 6.46 lb
- Miscellaneous
- Certifications & Standards
- TUV
- cTUVus
- CE
- FCC
- BSMI
- CCC
- EAC
- RCM
- UKCA
- BIS
- Energy Efficiency Certification
- 80 Plus Gold
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 3 (ErP Lot 3)
