- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Product Type
- Video Extender Transmitter/Receiver

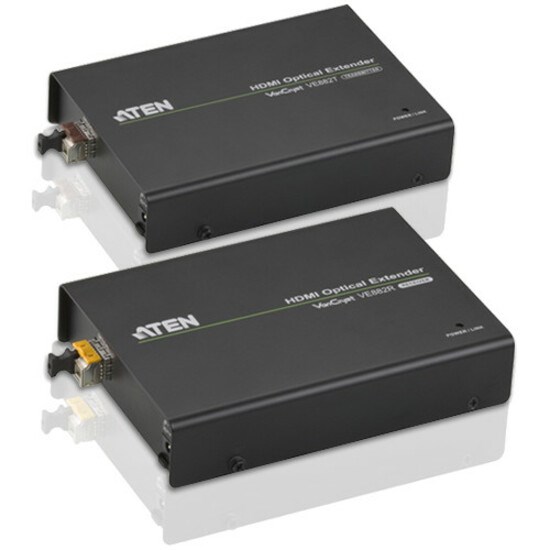

The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.
The VE882 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits).
The VE882 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 1968.50 ft
- Video
- Graphics Modes
- Full HD
- Maximum Video Resolution
- 1920 x 1080
- Interfaces/Ports
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 1
- Number of LC Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Power Description
- Input Voltage
- 5.3 V DC
- Physical Characteristics
- Product Material
- Metal
- Transmitter Height
- 1.23"
- Transmitter Width
- 4.06"
- Length
- 5.6"
- Form Factor
- Rack-mountable
- Transmitter Weight (Approximate)
- 14.82 oz
- Miscellaneous
- Package Contents
- HDMI Optical Extender
- 1 x IR Transmitter
- 1 x IR Receiver
- 1 x Mounting Kit
- 2 x Power Adapters
- 1 x User Instructions
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
