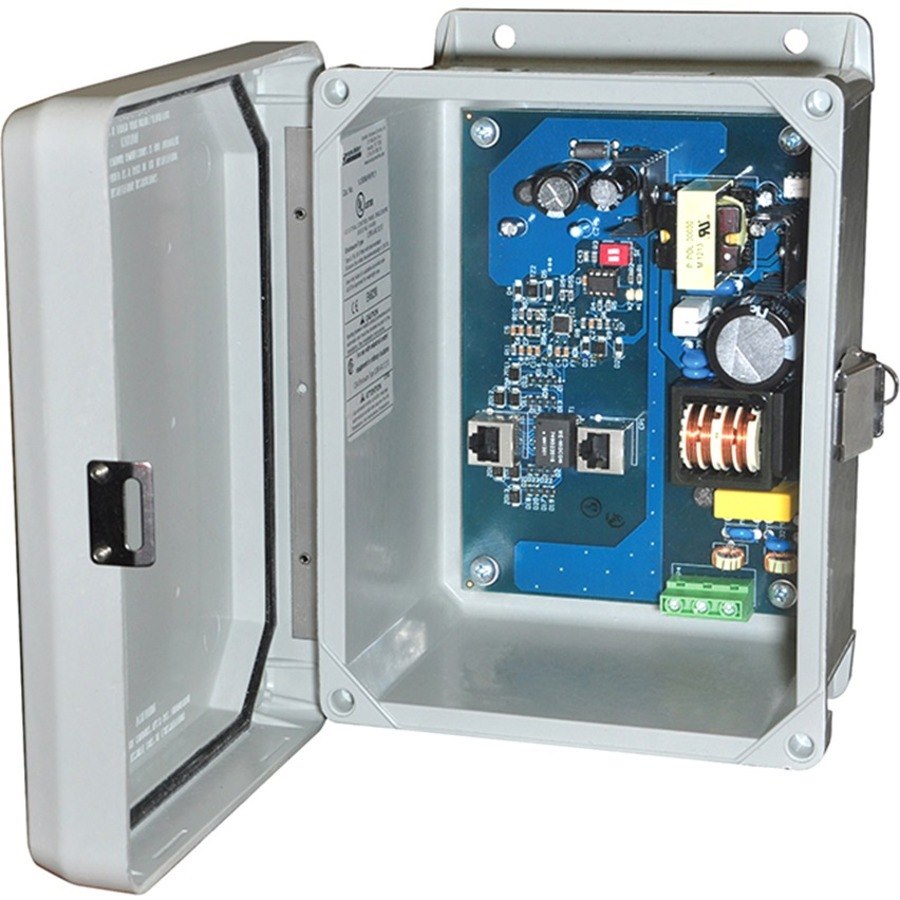

NetWay1DWPH is an outdoor single port midspan injector that provides Hi-PoE (60W), PoE+ (30W) and PoE (15W). The unit is ideal for use with outdoor IP cameras and PTZs, WiMAX modems and WLAN access points. NetWay1DWP features a lightweight NEMA 4/4X IP66-11 rated enclosure that can be wall or pole mounted. Enclosure is pre-drilled with three (3) 5/8" wiring inlets, and NEMA rated glands are included. The unit operates at 115VAC or 230VAC input.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Line
- NetWay
- Product Type
- PoE Injector
- Warranty
- Limited Warranty
- Lifetime
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Input Current
- 1.20 A
- Maximum Frequency
- 60 Hz
- Maximum Output Power
- 60 W
- Interfaces/Ports
- Input Ports
- 1 x 10/100/1000Base-T
- Output Ports
- 1 x 10/100/1000Base-T
- Physical Characteristics
- Form Factor
- External
- Height
- 9.3"
- Width
- 7.3"
- Depth
- 4.9"
- Weight (Approximate)
- 2.20 lb
- Miscellaneous
- Package Contents
- Outdoor Single Port Hi-PoE Midspan Injector
- Glands
- Additional Information
- Port Status LEDs
- Compatibility
- IP Cameras
- PTZ Network Cameras
- WiMAX Modems
- WLAN Access Points
- Certifications & Standards
- IEEE 802.3at
- IEEE 802.3af
- UL
- cULus
- CE
- NEMA 4/4X IP66-11
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- United States
