• General Information
• • Manufacturer
  • Altronix Corporation
  • Manufacturer Website Address
  • http://www.altronix.com
  • Brand Name
  • Altronix
  • Product Line
  • MAXIMAL
  • Packaged Quantity
  • 1
  • Product Type
  • Proprietary Power Supply

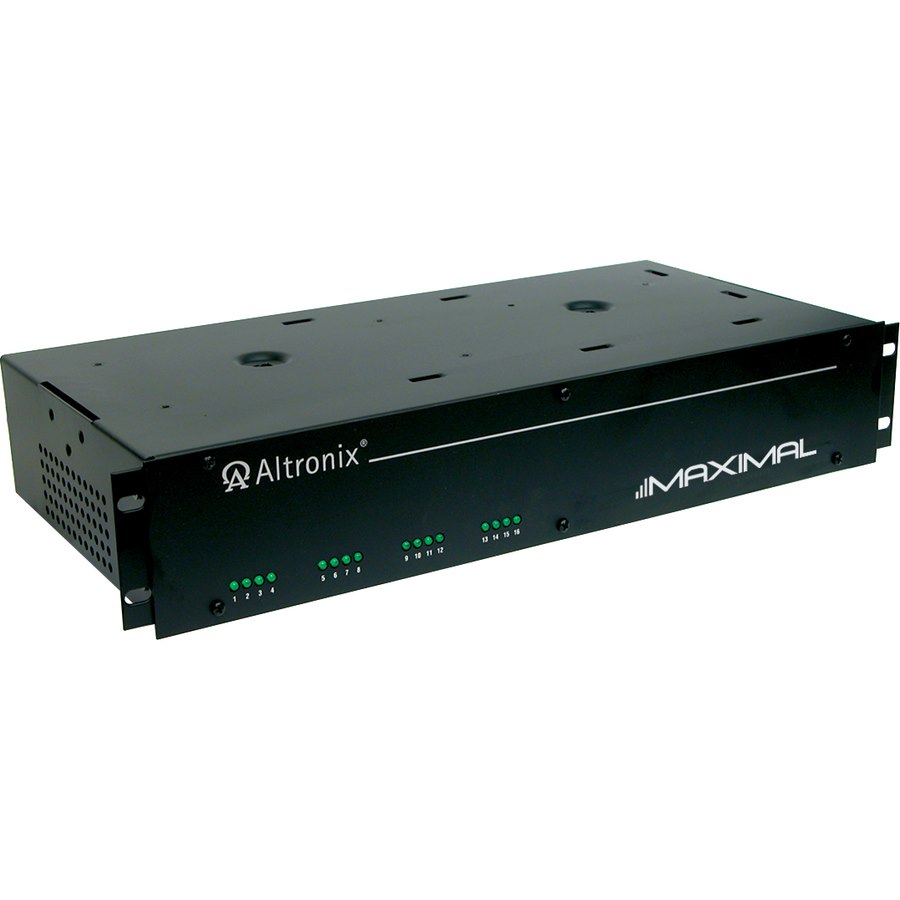

Maximal33R rack mount access power controller distributes and switches power to access control systems and accessories. It converts a 115VAC 50/60Hz input into sixteen (16) independently controlled 12VDC and/or 24VDC fuse protected outputs. Outputs are activated by an normally open (NO) or normally closed (NC) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the outputs.

• Warranty
• • Limited Warranty
  • Lifetime
